Product Specifications

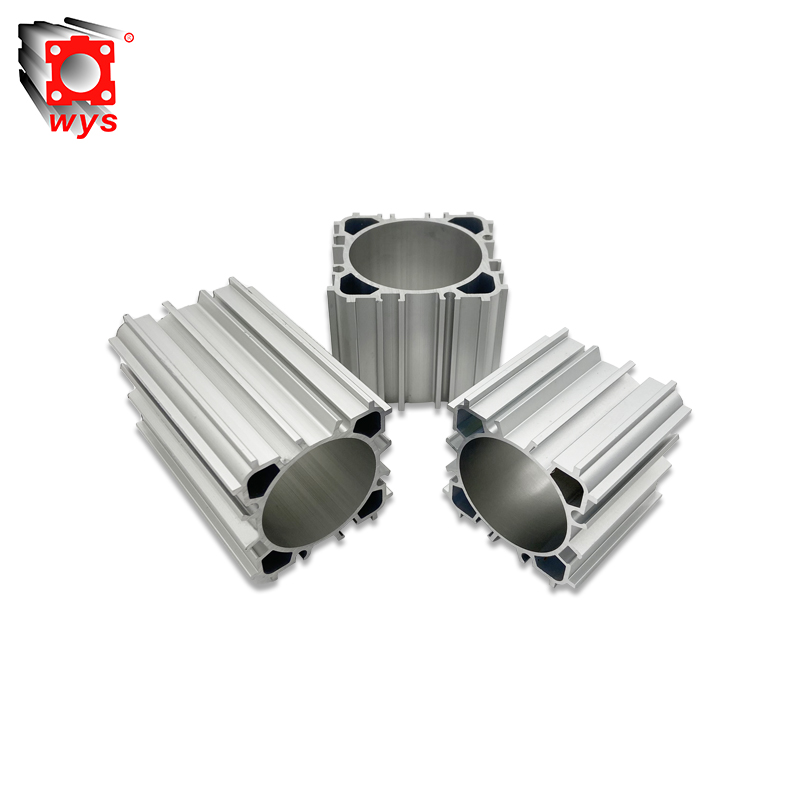

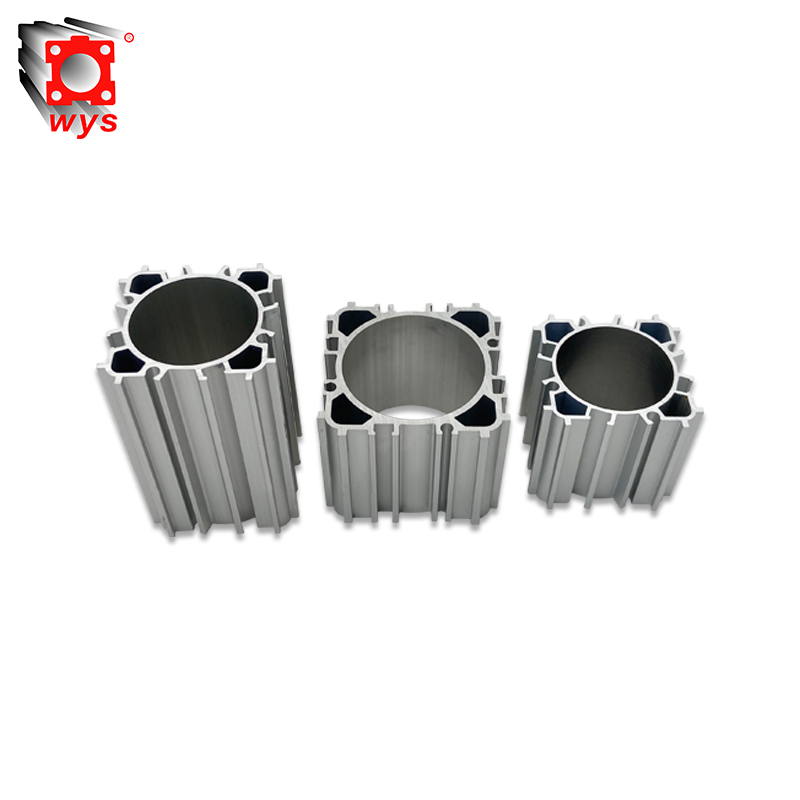

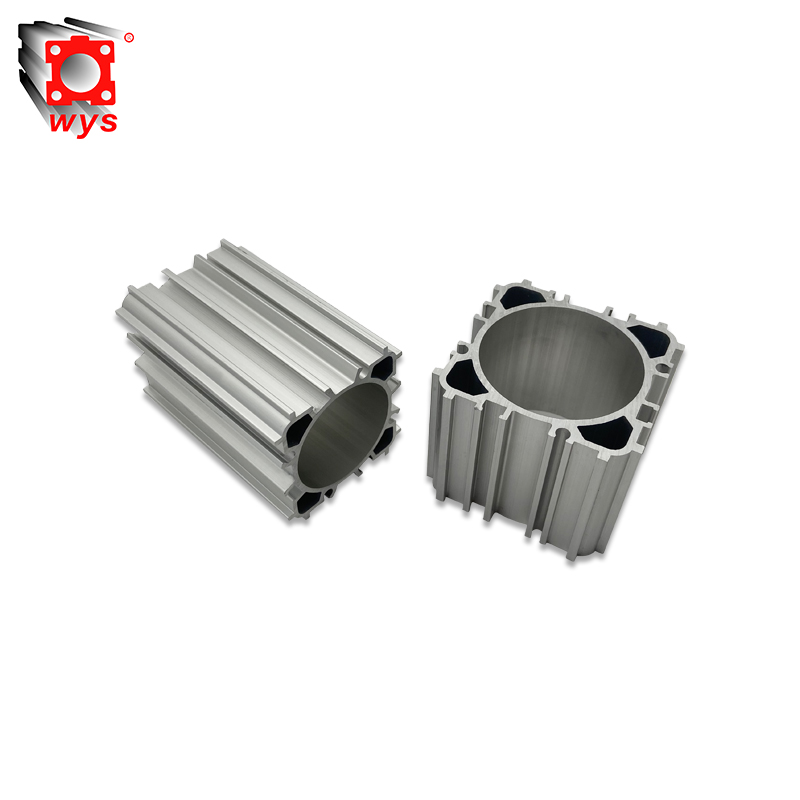

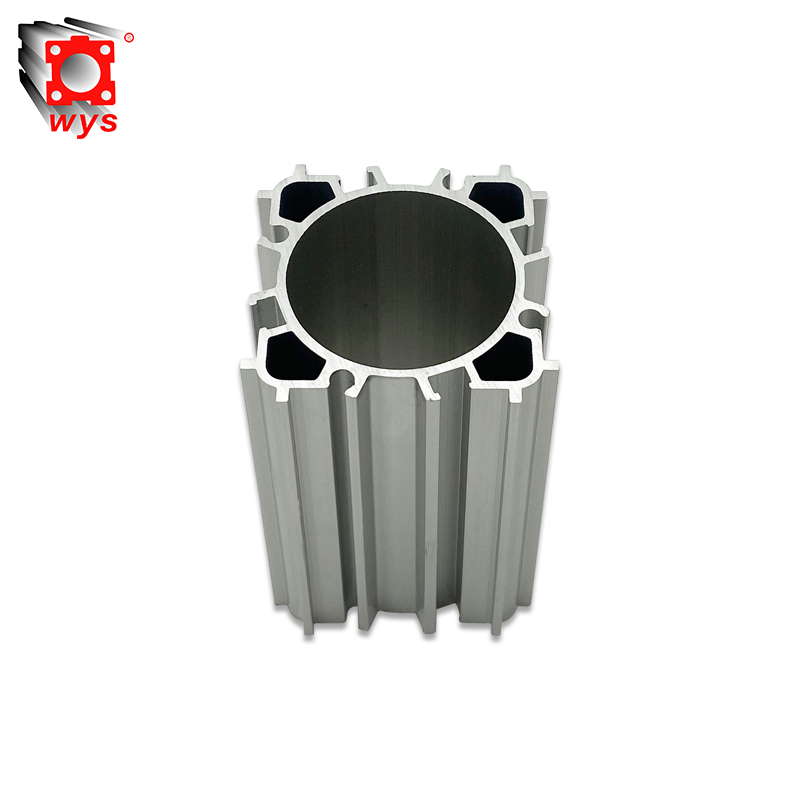

| Model No.: | CP96 ALUMINUM PNEUMATIC BASE CYLINDER BARREL | Brand: | WEIYINGSI |
| Applicable Industry: | Cylinder | Place Of Origin: | FOSHAN,CHINA |
| Inner Roughness: | Ra< 0.4 um | Heat Resistant Temperature: | reach 200 degrees |
| Heat Treatment: | over 4 hour | Honing: | 2 times |
| Anodized Layer: | 15~25 um | Surface treatment: | 100 mesh fine sand |
| Working Pressure: | under 8 Mpa | Hardness: | hv 420 |

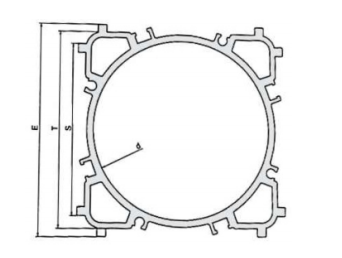

| NO | d | A | C | B |
| 1 | 32 | 46 | 32.5*32.5 | 42 |
| 2 | 40 | 53 | 38*38 | 47.4 |
| 3 | 50 | 64 | 46.5*46.5 | 59 |
| 4 | 63 | 74.5 | 56.5*56.5 | 69.4 |
| 5 | 80 | 94 | 72*72 | 87 |
| 6 | 100 | 113 | 89*89 | 106 |
| 7 | 125 | 138 | 110*110 | 131 |
Product Features
The CP96 pneumatic cylinder, featuring a lightweight aluminum CP96 cylinder barrel, is widely used in automated equipment and industrial production lines across industries such as machinery manufacturing, electronics, food processing, and packaging. This CP96 cylinder tube-structured actuator efficiently performs material handling, precision positioning, clamping, and pressing operations, enhancing automation productivity.
Select models of the CP96 cylinder barrel are equipped with built-in magnetic rings, enabling seamless integration with magnetic switches for real-time position detection and control. The CP96 pneumatic cylinder series offers versatile mounting configurations, including base-type installations, ensuring compatibility with diverse system requirements. Engineered for durability, the CP96 cylinder tube incorporates dual-end cushioning technology to minimize impact forces at stroke limits, extending the CP96 pneumatic cylinder's service life by over 30%.
As a double-acting pneumatic device, the CP96 cylinder barrel enables bidirectional motion control through pressurized air input. Its symmetrical chamber design, combined with precision-machined CP96 cylinder tube surfaces, ensures smooth piston movement in both directions, meeting stringent industrial accuracy demands. The CP96 pneumatic cylinder series offers bore sizes ranging from 32mm to 125mm, allowing engineers to select the optimal CP96 cylinder barrel configuration based on load capacities and operational needs.
Notably, the CP96 cylinder tube supports stroke lengths up to 2000mm, with standardized options like the CP96SDD50-200C-Z76 model featuring a 200mm stroke. Modular design principles enable flexible combinations of CP96 cylinder barrel bore sizes and CP96 cylinder tube stroke specifications, empowering users to create tailored pneumatic solutions. With its balanced blend of standardized components and customizable parameters, the CP96 pneumatic cylinder series stands as a preferred choice for precision motion control in global automation systems.
Key features breakdown:
CP96 cylinder barrel: Lightweight aluminum construction, magnetic ring compatibility, dual-cushion design
CP96 pneumatic cylinder: Double-acting operation, 32-125mm bore range, modular configurability
CP96 cylinder tube: 2000mm max stroke, precision-machined surfaces, impact-resistant structure
This version maintains technical accuracy while strategically repeating keywords to meet SEO or documentation requirements.
Packaging & Delivery
| Selling Units: | Meter |

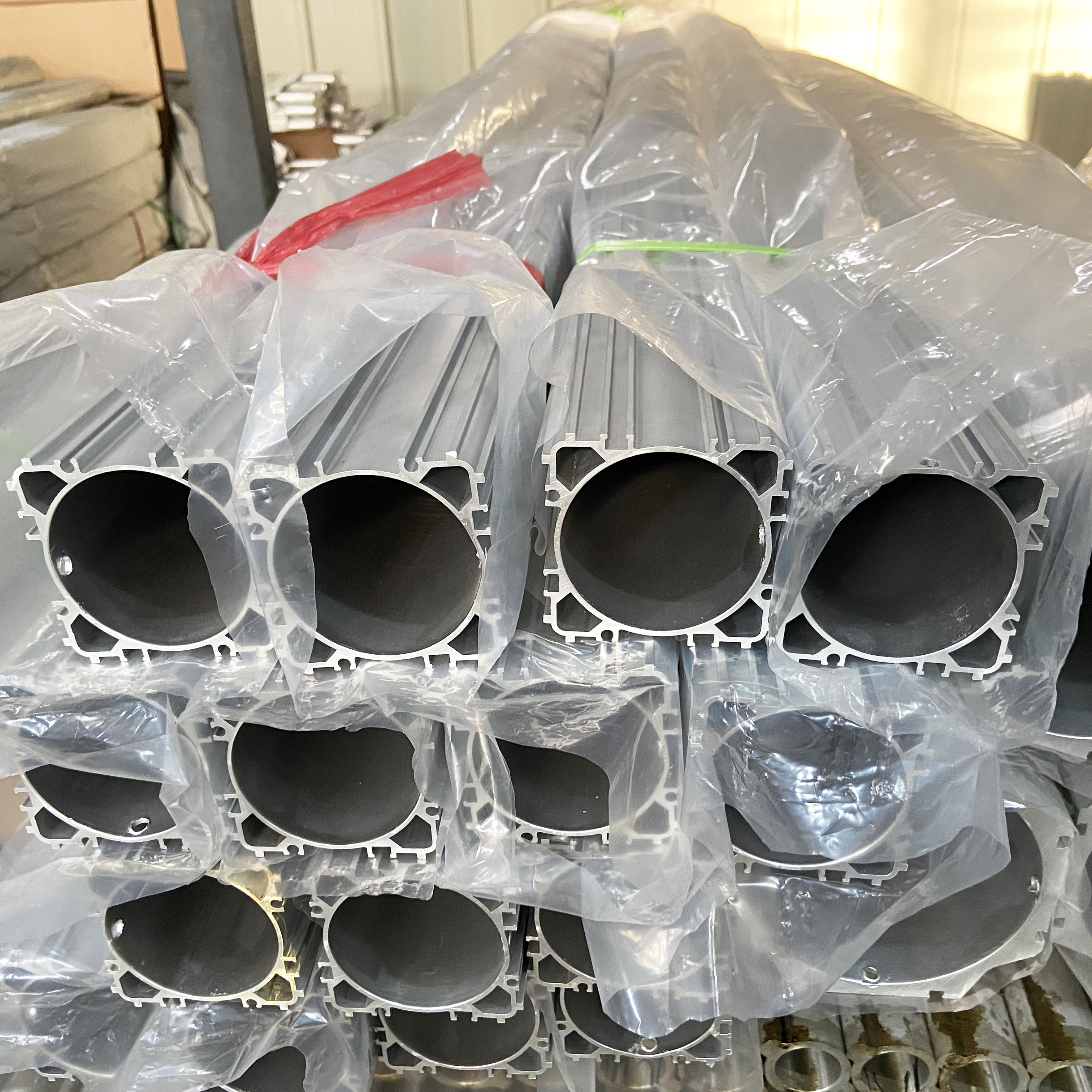

| Package Type: | 1. Film anti wear protection 2. Optional cardboard packaging 3. Use export wooden boxes for large quantities |
