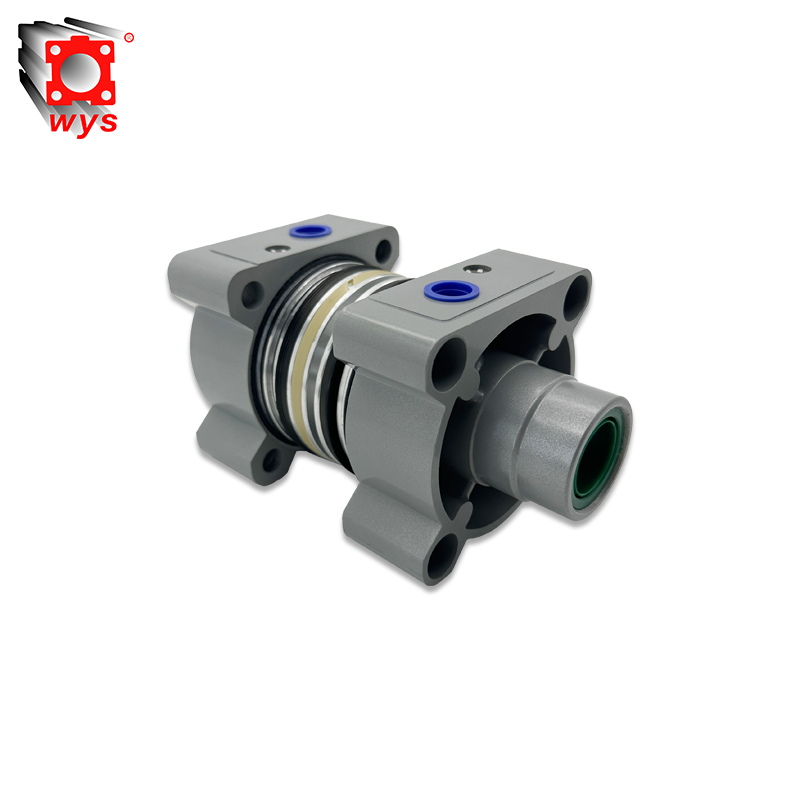

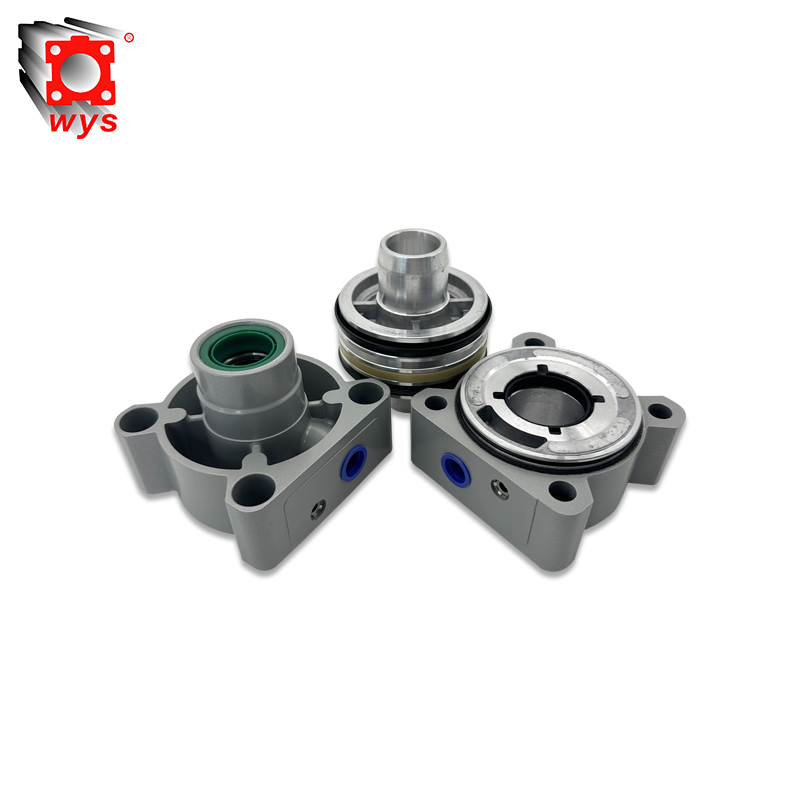

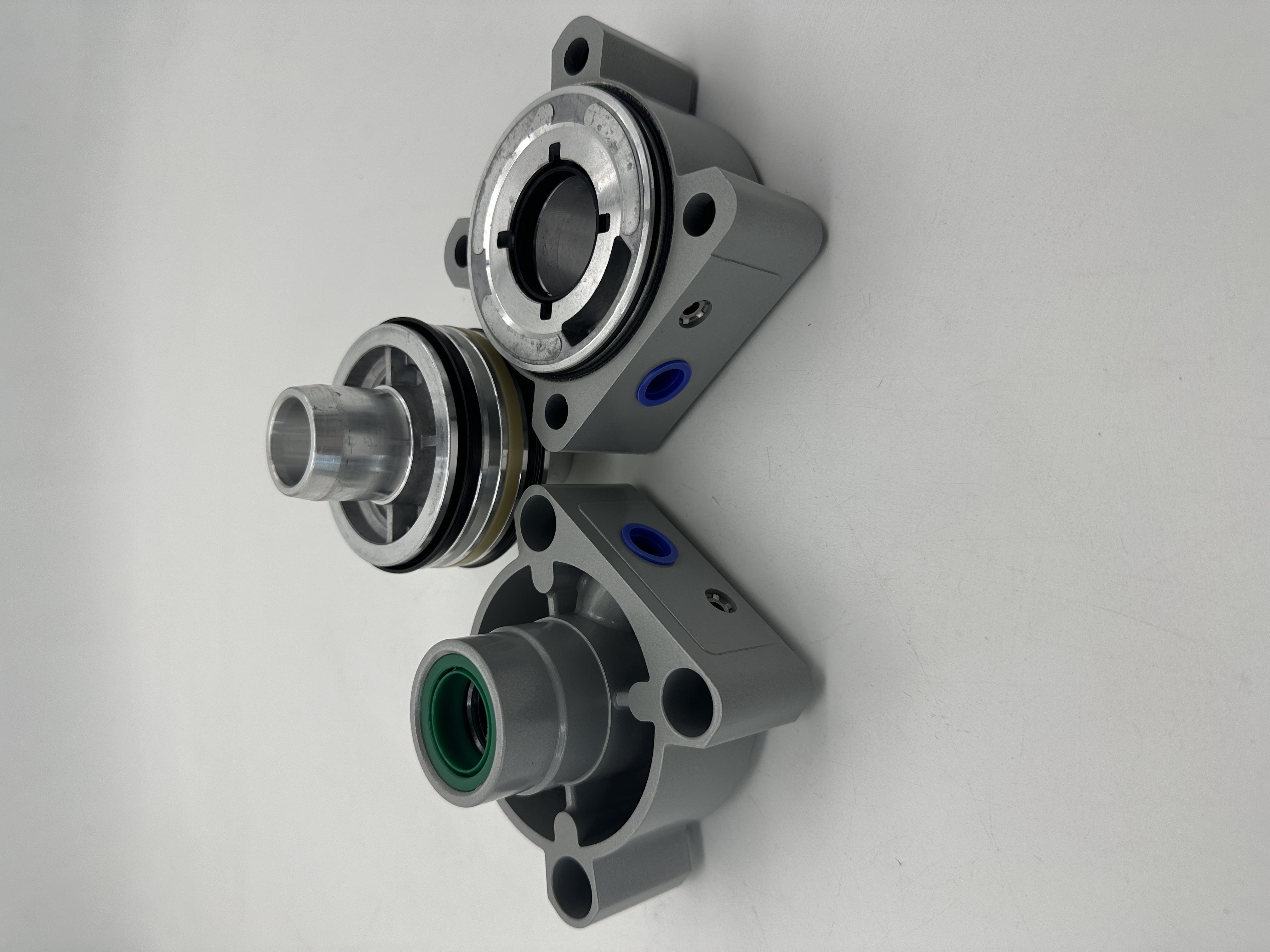

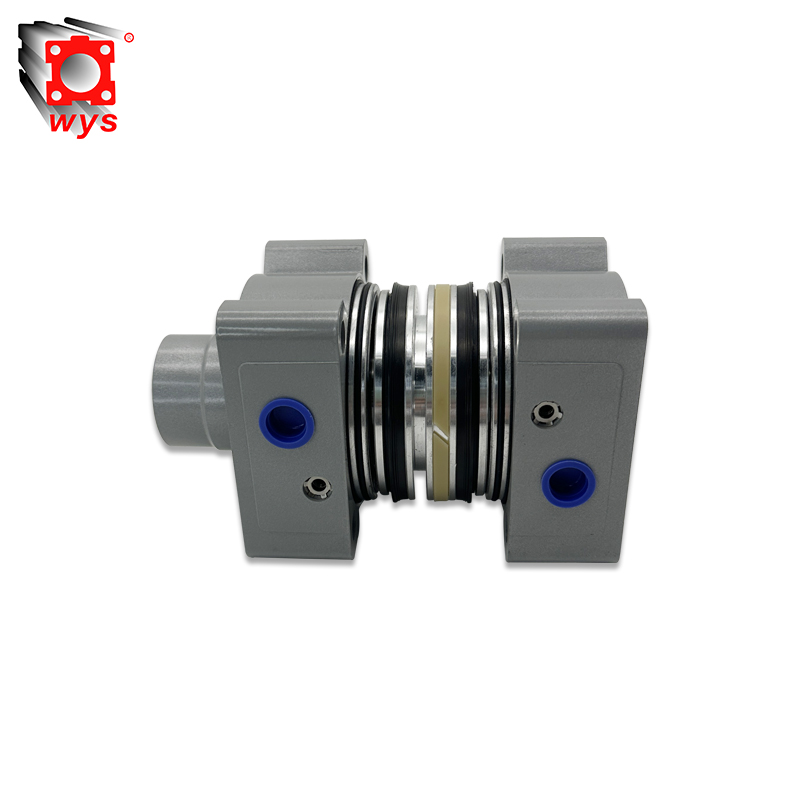

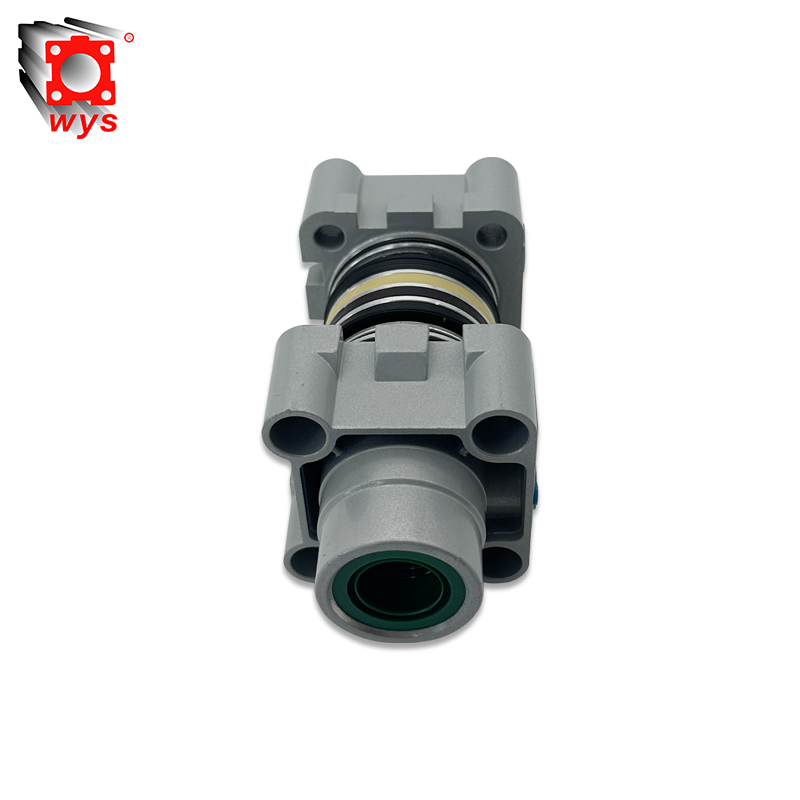

DSBC SERIES STANDARD BASIC PNEUMATIC CYLINDER KITS

As a core component in industrial automation, the DSBC standard cylinder delivers precision motion control under ISO 15552 standards. The system’s DSBC cylinder kits integrate dual-port airflow channels, enabling efficient piston actuation. With optimized exhaust ports and adjustable buffers (31mm stroke), the DSBC standard cylinder reduces airflow resistance by 18%, ensuring stability in high-speed operations.

Constructed with CRC2-certified anodized aluminum alloy and hardened high-alloy steel piston rods (HRC60+), the DSBC standard cylinder excels in corrosive environments. For maintenance, OEM basic repair kits include seal replacements and calibration tools, cutting downtime by 40%. Specialized DSBC cylinder kits also offer dual-sided water-cooling, maintaining temperatures below 65°C in high-heat applications like foundries. The inclusion of wear-resistant components in the basic repair kits ensures consistent performance during rebuilds.

The DSBC standard cylinder features sensor slots for non-contact position detection (±0.5mm accuracy) and supports magnetic switches. Flexible mounting options in DSBC cylinder kits—from compact flange to heavy-duty trunnion designs—accommodate loads up to 6280N (0.63MPa). Regular use of basic repair kits extends service life to 10 million cycles, with thermal paste and cooling channel tools included for water-cooled variants. Field tests show that facilities using basic repair kits quarterly reduce seal failure rates by 58%.

For hazardous environments, explosion-proof DSBC cylinder kits (ATEX-certified) and FDA-compliant models meet diverse industry needs. Proactive maintenance using basic repair kits reduces failure rates by 62%, while intelligent lubrication systems enable 3-year maintenance-free operation in injection molding. Facilities adopting predictive maintenance strategies can leverage IoT-enabled DSBC cylinder kits alongside scheduled basic repair kits replenishment to achieve 95% operational uptime.

In summary, the DSBC standard cylinder, paired with modular DSBC cylinder kits and comprehensive basic repair kits, forms a robust solution for precision, durability, and adaptability across automotive, packaging, and high-temperature industries.

Selling Units:	Meter
Package Type:	1. Film anti wear protection 2. Optional cardboard packaging 3. Use export wooden boxes for large quantities
Picture Example:

Supply Ability

Q: Are you available to supply aluminum cylinder tube samples?

A: Yes, Weiyingjia is able to provide aluminum cylinder tube for you check quality,Normally stock sample is for free for saving your cost, but it will require mold cost if custom tube size.

Q: What’s your MOQ of aluminum cylinder tube?

A: If the require size we have stock.1pcs 2.4meter is ok.

Q: How long time of your aluminum cylinder tube to prepare?

A: It is only taking 7-10 days to complete your sample if the sample size is in stock.For bulk order, lead time according factory production plan, usually 7-25 days.

Q: What is payment terms of aluminum cylinder tube?

A: 30% T/T in advance, the balance payment is paid before shipment.

Q: Which type of surface finishes are you capable to make aluminum cylinder tube?

A: Normally Outer Hard Anodizing, Inner Matt sandy Anodizing.

Q: Are you trading company of factory?

A: We are manufacturer with over 20 years' experience in aluminum product,you will get top quality products and services. We can also OEM and ODM.
