Product Specifications
| Product Name: CQ2B Cylinder Barrel | Length | Standard Aperture | Roughness | Material/Color | Tolerance | Appearance |
Customer Requirements | 16-320mm / Customization Available | Ra0.25 | Silver-white Aluminum Alloy | H9-H11 | Smooth finish, noticeable metallic luster (seams inconspicuous) |
| Product Attributes | |||||||
| Material | Length Tolerance | Country of Origin | Shipping Time | Province | Brand | Minimum Aluminum Content | Alloy Type |
| 6063-T5 | 12 millimeters | China | 15-20 days | Guangdong | WYS | 98.8% | Yes |
| Hardness | Length | Processing Services | Shape | Surface Treatment | Supply Status | Application | Processing Services |
| Hv420-450 | 2/2.4M, Customizable, CNC Machining | Punching, Cutting | Square | Anodizing | T5 | Used for manufacturing cylinders | CNC |
Product Features

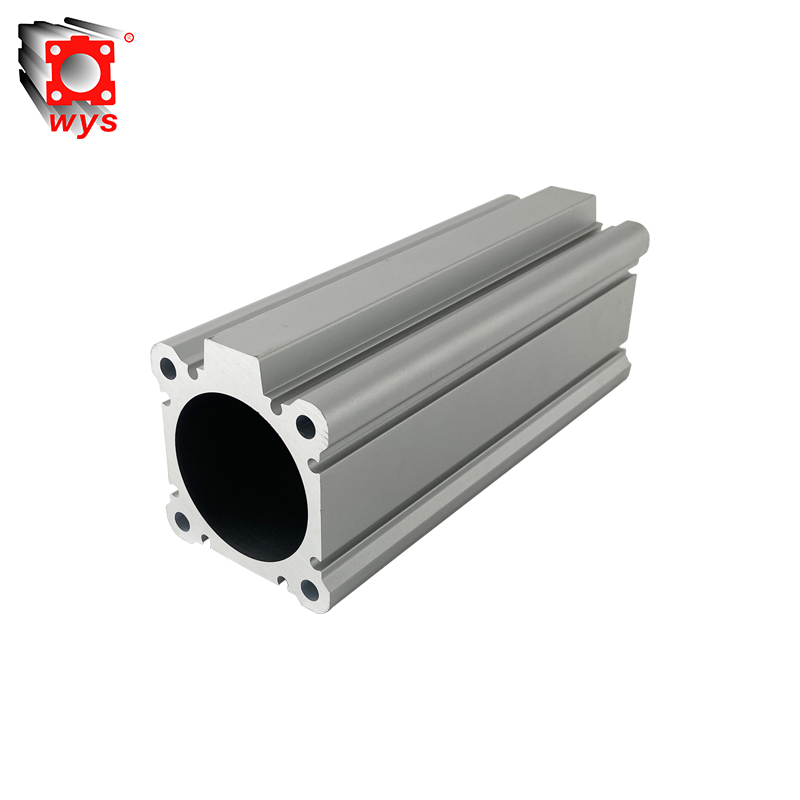

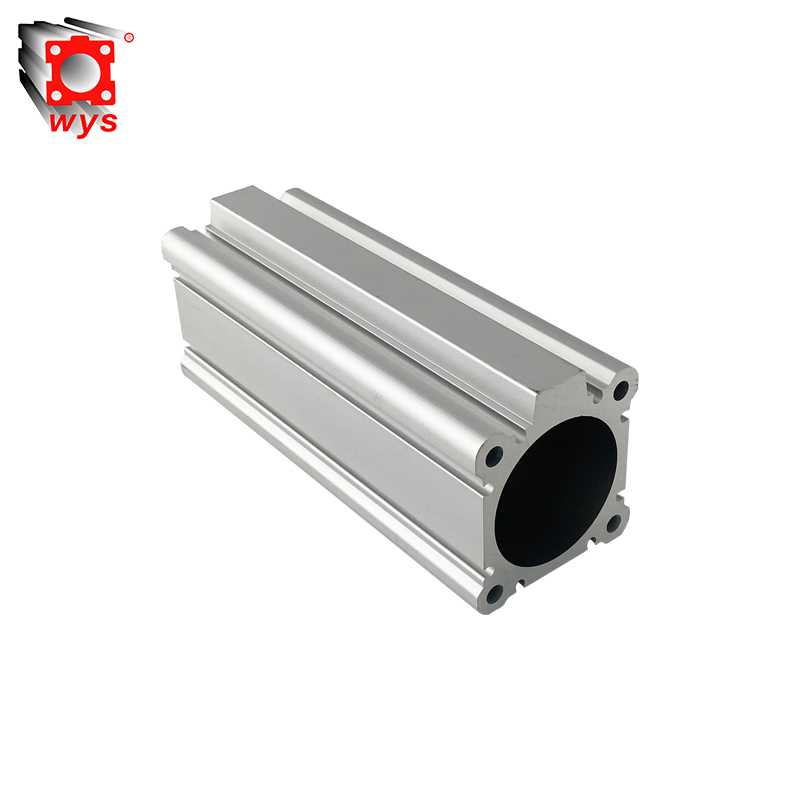

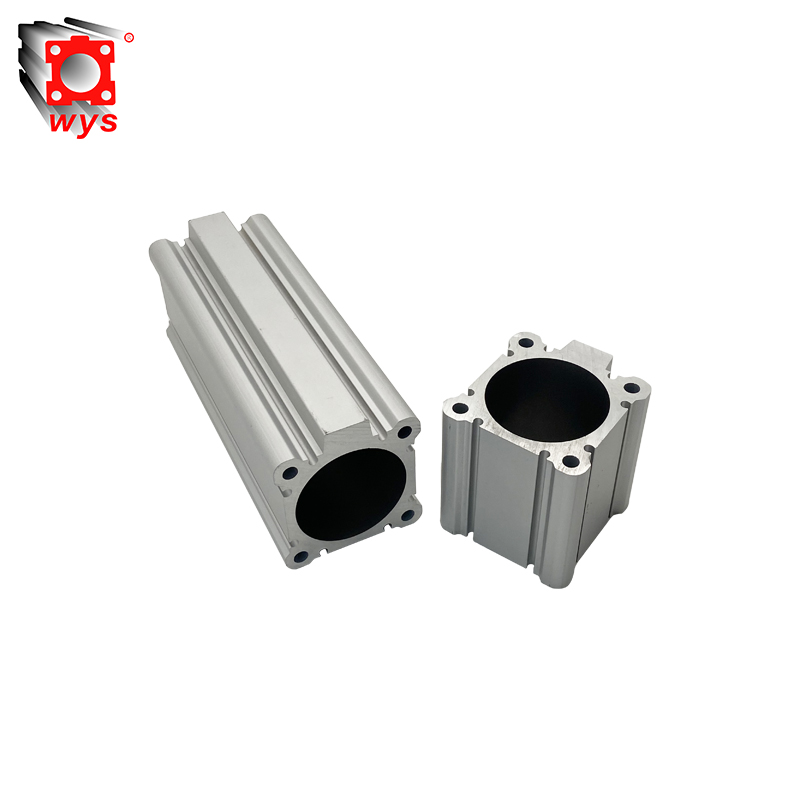

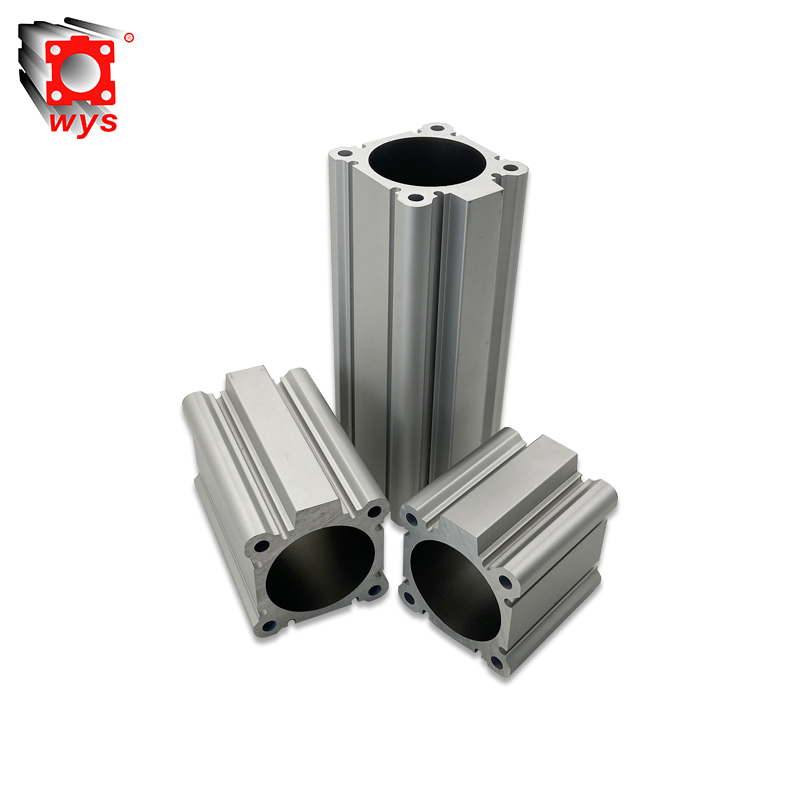

This product is a professional CQ2B compact cylinder tube designed for CQ2B series compact pneumatic cylinders, widely used in automated machinery, pneumatic jigs and precision industrial equipment. It adopts high-purity 6063 aluminum barrel with integral extrusion molding, featuring compact structure, stable hardness, light weight and excellent deformation resistance. It provides better pressure resistance and durability than ordinary aluminum materials, perfectly fitting the narrow installation space of compact cylinders.
As a high-quality pneumatic air cylinder tube, this cylinder tube is finely honed inside with smooth inner surface and high concentricity. It effectively reduces piston friction and seal wear, ensuring stable movement and fast response. It supports long-term high-frequency operation and greatly improves the working stability of pneumatic equipment.
Processed with strict surface treatment, it becomes a premium hard anodized aluminum tube with strong wear resistance, scratch resistance, rust and corrosion resistance. It works stably in dusty, humid and oily industrial environments, effectively avoiding air leakage, jamming and aging problems. With standard industrial size and high compatibility, it can directly replace original cylinder barrels with easy installation, which is an ideal replacement part for pneumatic automation systems.
Packaging & Delivery
| Selling Units: | Meter |
| Package Type: | 1. Film anti wear protection 2. Optional cardboard packaging 3. Use export wooden boxes for large quantities |

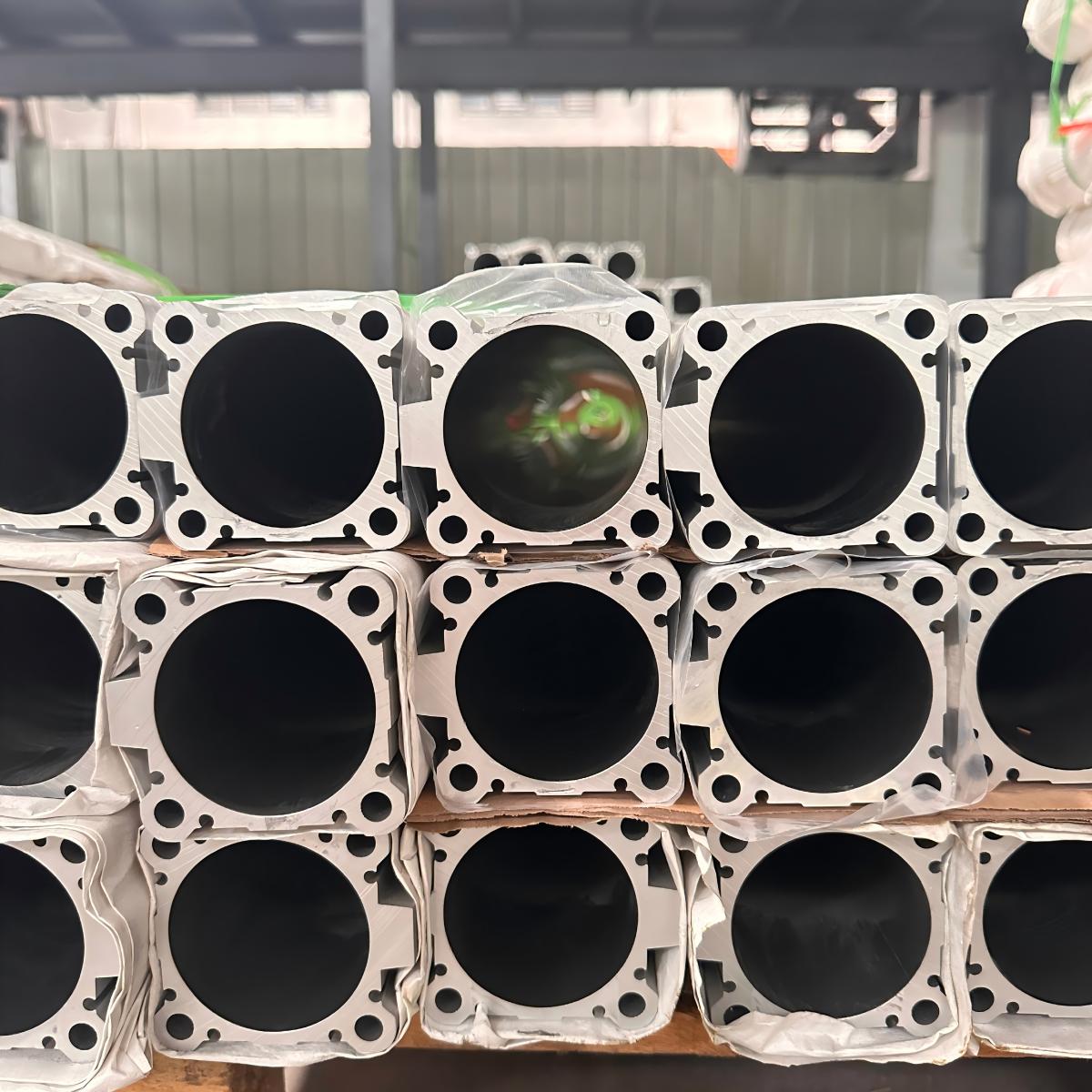

| Picture Example: |  |
Supply Ability
| Transportation | Ocean,Land,Air,Express |
| Supply Ability | 100000Meters/month |
| Port | Foshan,Guangzhou,Shenzhen |
| Payment Type | L/C,T/T,Paypal |
| Incoterm | FOB,EXW |
FAQ
A: This aluminum tube is specially manufactured for CQ2B compact cylinders. All standard sizes are available for direct replacement of original barrels, widely compatible with all automatic pneumatic equipment.
A: The inner wall is precision honed for low friction, which reduces wear of sealing rings and ensures smooth reciprocating movement without jamming.
A: Mass stock of standard CQ2B compact cylinder tube is ready, customized inner diameter and length are acceptable.
A: It is applicable to assembly lines, stamping machines, automatic jigs and all equipment equipped with CQ2B pneumatic cylinders.
