Product Specifications
| Product Name: SC Cylinder Barrel | Length | Standard Aperture | Roughness | Material/Color | Tolerance | Appearance |
Customer Requirements | 16-320mm / Customization Available | Ra0.25 | Silver-white Aluminum Alloy | H9-H11 | Smooth finish, noticeable metallic luster (seams inconspicuous) |
| Product Attributes | |||||||
| Material | Length Tolerance | Country of Origin | Shipping Time | Province | Brand | Minimum Aluminum Content | Alloy Type |
| 6063-T5 | 12 millimeters | China | 15-20 days | Guangdong | WYS | 98.8% | Yes |
| Hardness | Length | Processing Services | Shape | Surface Treatment | Supply Status | Application | Processing Services |
| Hv420-450 | 2/2.4M, Customizable, CNC Machining | Punching, Cutting | Square | Anodizing | T5 | Used for manufacturing cylinders | CNC |
Product Features

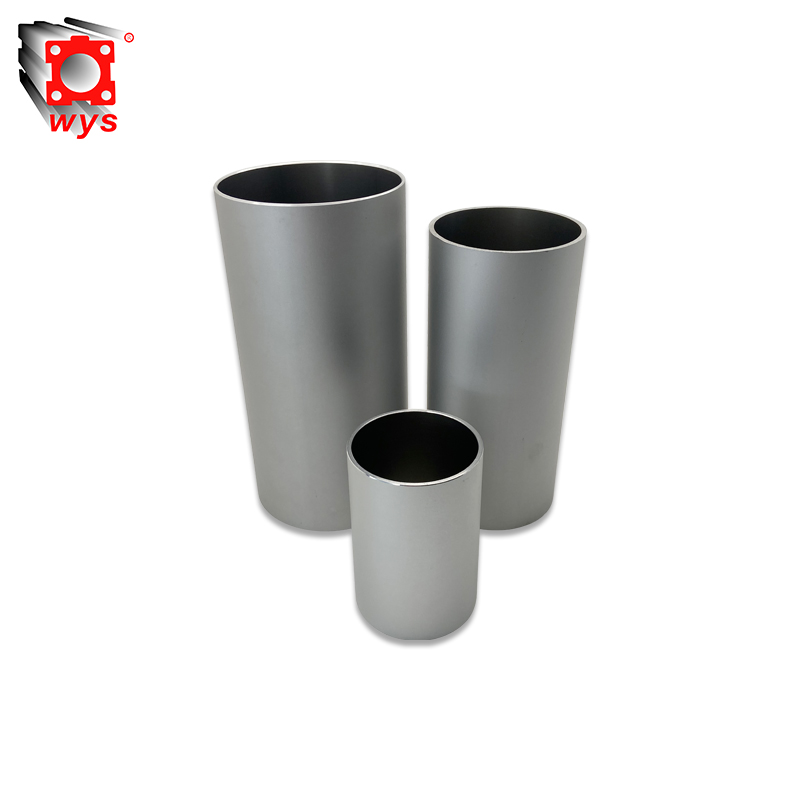

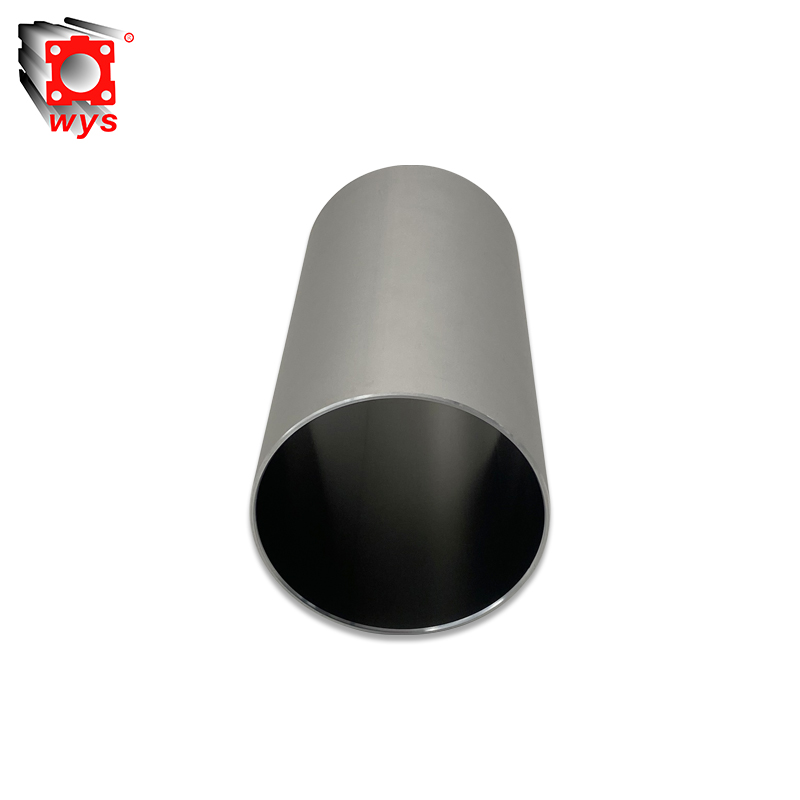

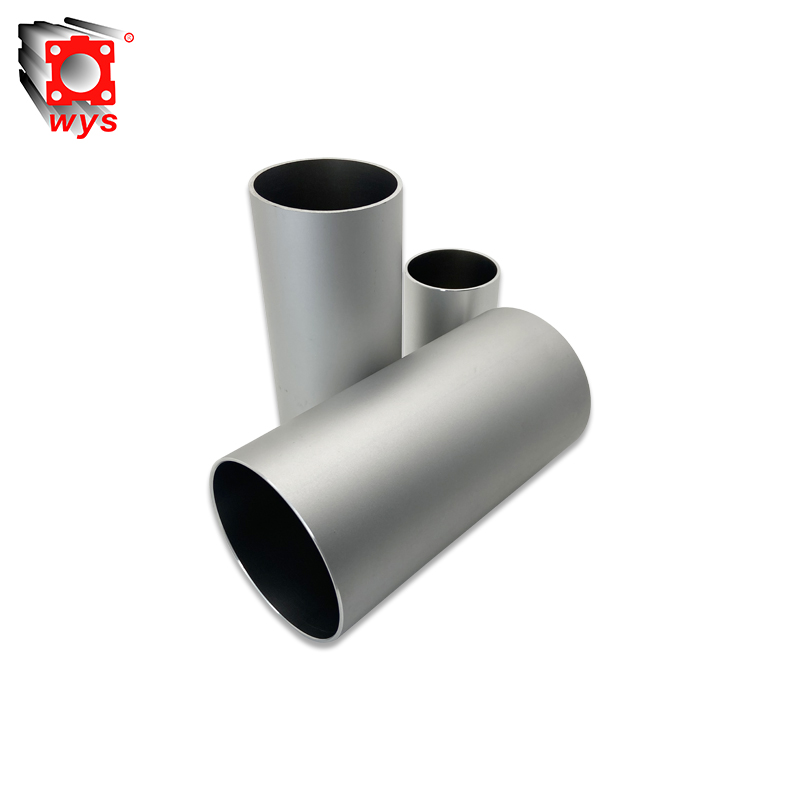

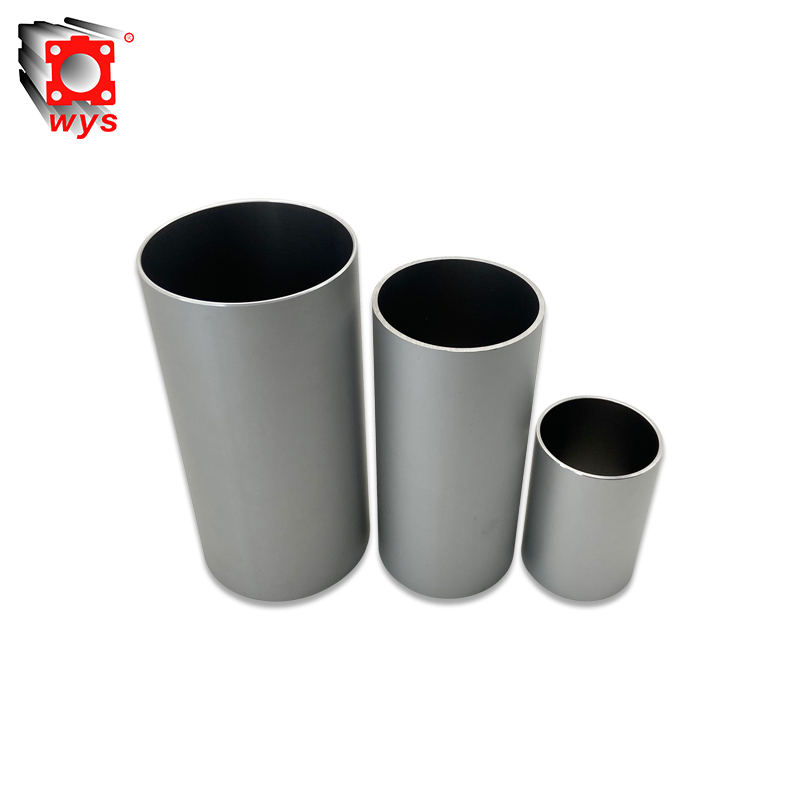

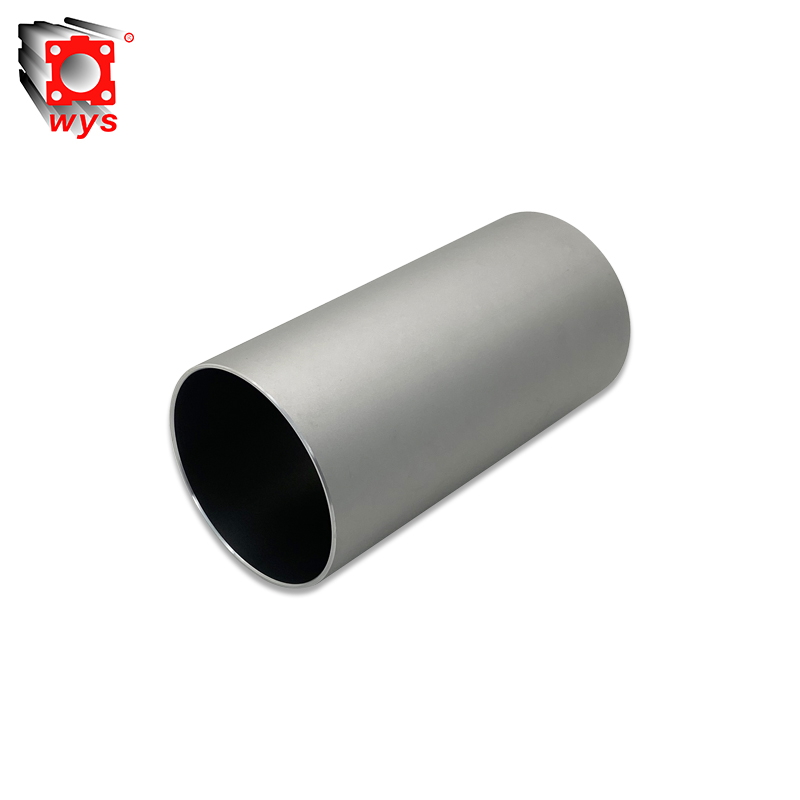

This SC round cylinder tube is a professional barrel specially designed for SC series standard pneumatic cylinders. As a universal industrial tie rod air cylinder tube, it is widely used in automatic production lines, pneumatic jigs and mechanical transmission equipment.
Made of high-purity 6063 aluminum barrel with one-piece extrusion molding, the tube features uniform texture, lightweight structure and excellent pressure resistance. It is not easy to deform under long-term high-frequency operation and maintains stable performance in continuous industrial working cycles.
The inner wall is precisely honed to ensure ultra-smooth surface and high concentricity, effectively reducing piston friction and seal wear. It avoids air leakage and cylinder jamming, delivering stable movement and reliable working efficiency.
After strict surface treatment, it forms premium hard anodized aluminum tube with outstanding wear resistance, scratch resistance and corrosion resistance. It resists dust, oil stain and moisture in harsh workshop environments.
With standard industrial specifications and strong compatibility, it can directly replace original SC cylinder barrels, offering easy installation and low maintenance cost for pneumatic system replacement and mass supporting application.
Packaging & Delivery
| Selling Units: | Meter |
| Package Type: | 1. Film anti wear protection 2. Optional cardboard packaging 3. Use export wooden boxes for large quantities |
| Picture Example: |  |
Supply Ability
| Transportation | Ocean,Land,Air,Express |
| Supply Ability | 100000Meters/month |
| Port | Foshan,Guangzhou,Shenzhen |
| Payment Type | L/C,T/T,Paypal |
| Incoterm | FOB,EXW |
FAQ
This tie rod air cylinder tube is integrally extruded from high-quality 6063 aluminum barrel, featuring stable structure, light weight and excellent pressure resistance for long-term industrial operation.
The 6063 aluminum barrel provides uniform density, good toughness and smooth honed inner wall, reducing friction and extending the service life of piston seals.
Yes, it adopts standard industrial size with high interchangeability and can directly replace the original SC round cylinder barrel.
It is widely used in automatic production lines, pneumatic jigs, stamping machines and various tie rod pneumatic cylinder equipment.
