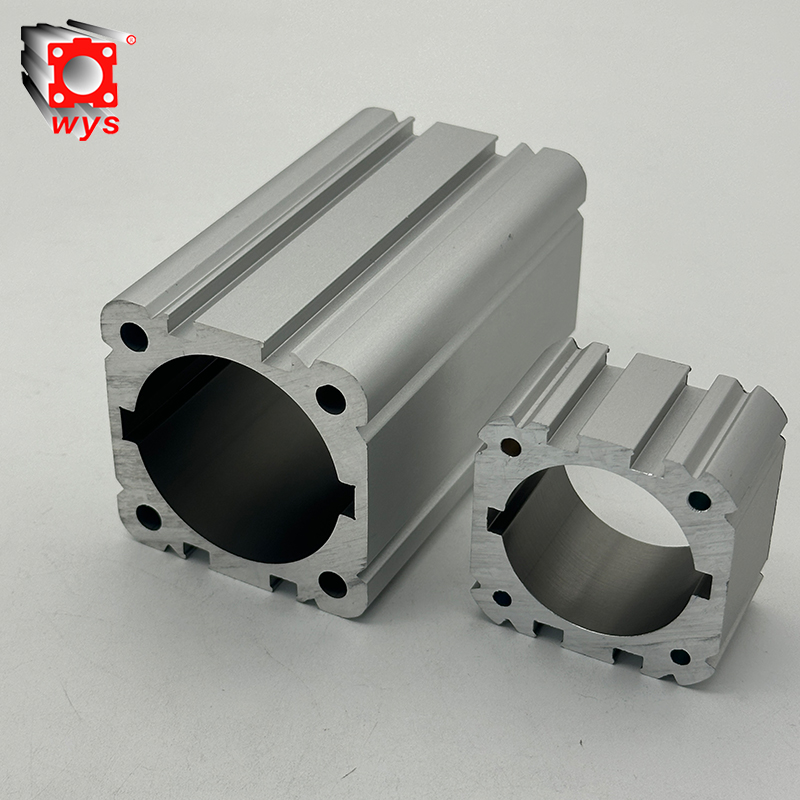

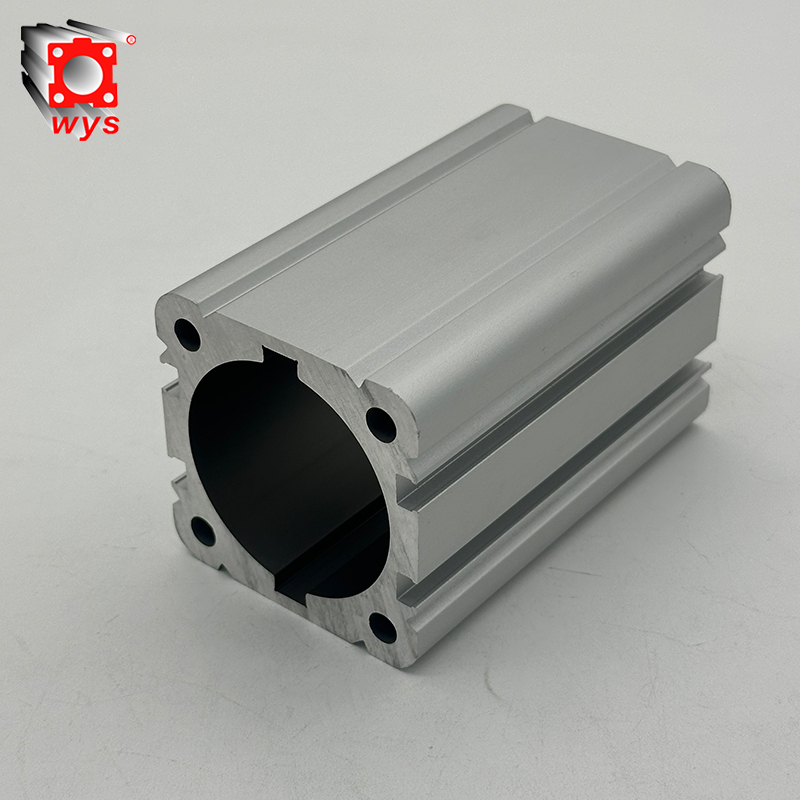

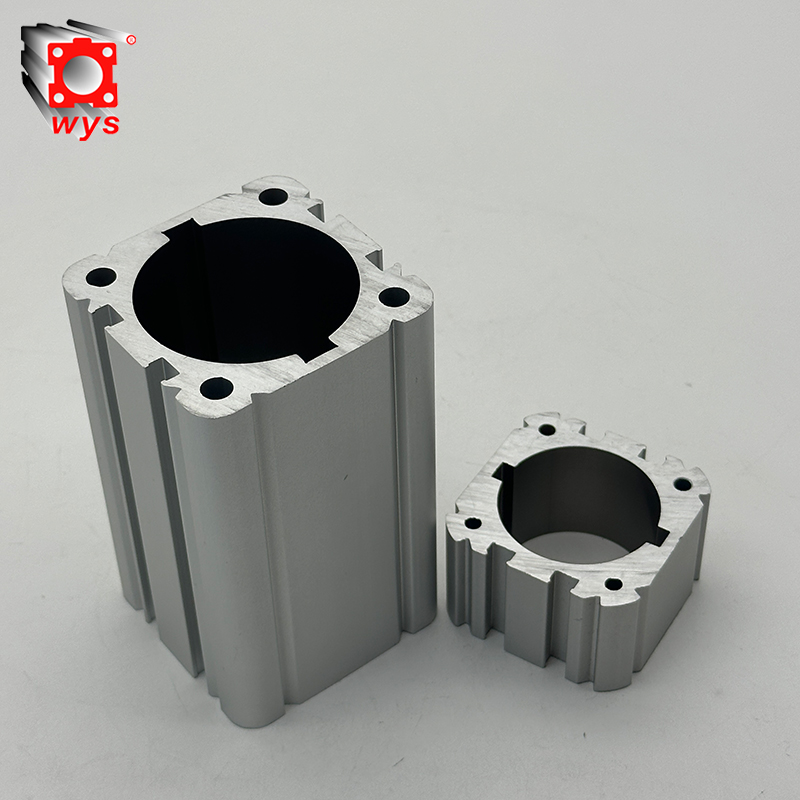

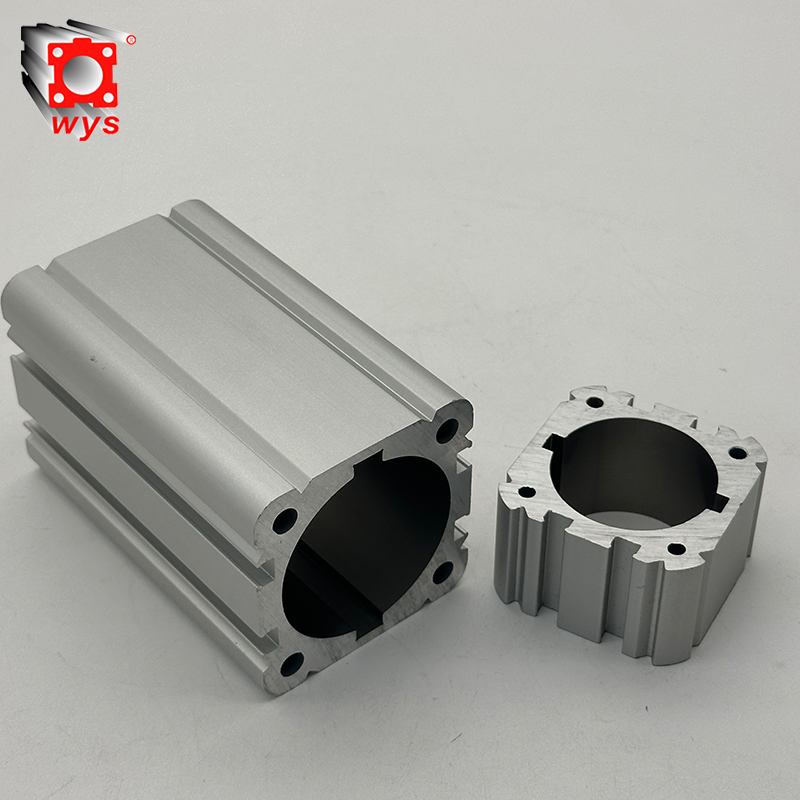

Product Specifications
| Product Name: DNC Series Cylinder Barrel | Length | Standard Aperture | Roughness | Material/Color | Tolerance | Appearance |
Customer Requirements | 16-300mm / Customization Available | Ra0.25 | Silver-white Aluminum Alloy | H9-H11 | Smooth finish, noticeable metallic luster (seams inconspicuous) |
| Product Attributes | |||||||
| Material | Length Tolerance | Country of Origin | Shipping Time | Province | Brand | Minimum Aluminum Content | Alloy Type |
| 6063 | 12 millimeters | China | 15-20 days | Guangdong | WYS | 98.8% | Yes |
| Hardness | Length | Processing Services | Shape | Surface Treatment | Supply Status | Application | Processing Services |
| Hv420-450 | 2/2.4M, Customizable, CNC Machining | Punching, Cutting | Square | Anodizing | T5 | Used for manufacturing cylinders | CNC |
Product Features
The Weiyinjia DNC electric cylinder barrel is a precision linear actuator driven by a servo or stepper motor, designed in accordance with European standards (ISO 6431). Its shape and installation dimensions are compatible with traditional DNC pneumatic cylinders, allowing it to directly replace pneumatic or hydraulic cylinders and achieve high-precision, programmable, and long-life linear motion. It features full-stroke position, speed, and thrust closed-loop control, with multi-segment point programming and support for S-curve acceleration and deceleration. It has no air source loss and low standby power consumption, saving over 60% energy compared to pneumatic systems.
The fully enclosed structure requires no maintenance and has no risk of air leakage. At the same time, it inherits the lightweight characteristics of the aluminum alloy cylinder barrel, reducing equipment load and improving overall operational efficiency and energy consumption performance.
The working pressure is 0.6 - 1.2 MPa, and the ambient temperature ranges from -20℃ to 80℃. It features an adjustable air cushion design at both ends, ensuring no impact at the end. It can be equipped with magnetic switches and terminal locking devices to meet the requirements of safety protection and precise detection. Compared with traditional aluminum alloy cylinder barrels, the positioning accuracy is improved by 100 times, and the speed adjustment range is wider. It supports both high-speed reciprocating and low-speed stable operation modes. The response time for equipment start and stop is shortened by more than 40%, and over 80 more workpieces can be completed per shift, significantly enhancing production efficiency.
Whether in high-precision scenarios such as precision assembly and laser cutting, or in high-frequency repetitive scenarios like logistics conveyance and packaging machinery, it can stably output. At the same time, it replaces traditional pneumatic cylinder components, eliminating the maintenance cost of the pneumatic system and achieving the triple value of "energy saving + peace of mind + cost reduction".
The cylinder body and installation dimensions follow the European standard DNC specifications, allowing for direct replacement of traditional DNC cylinders without the need to modify equipment or fixtures. Designed in accordance with European standards, the shape and installation dimensions are compatible with the universal DNC standard cylinders, making it a high-precision electric upgrade solution for pneumatic cylinders. The aluminum alloy cylinder body, combined with precise processing, offers IP65/IP66 dust and water resistance, making it suitable for environments with dust, moisture, and oil.
Packaging & Delivery
| Selling Units: | Meter |
| Package Type: | 1. Film anti wear protection 2. Optional cardboard packaging 3. Use export wooden boxes for large quantities |
| Picture Example: |  |
Supply Ability
| Transportation | Ocean,Land,Air,Express |
| Supply Ability | 100000Meters/month |
| Port | Foshan,Guangzhou,Shenzhen |
| Payment Type | L/C,T/T,Paypal |
| Incoterm | FOB,EXW |
About Us
Foshan Weiyinjia Technology Co., Ltd.'s DNC European standard electric cylinder is deeply compatible with the ISO9001 international standard and perfectly integrates with the traditional pneumatic cylinder component ecosystem. It is the preferred actuator for replacing traditional cylinders and upgrading automated production lines. The core is made of an aluminum alloy cylinder barrel, which is strengthened through precision processing and anodized aluminum alloy cylinder barrel technology, combining lightweight and high durability. It is perfectly suitable for industrial scenarios such as automated assembly, precision press-fitting, and logistics transportation, providing stable and precise linear drive power for equipment.
FAQ
A: Yes, we can provide free samples, but we will charge for the delivery service at your location. In short, every requirement of yours is of the greatest value to us.
A: 12 months of normal use.
A: For the regular model, it will take 7-10 days. Since we have the ability to maintain inventory, for large orders, it will take approximately 15-20 days.
A: You can directly send us an email or make an inquiry on Alibaba.
A: Yes, we can offer different discounts based on the quantity of your order.
A: By sea/air/express delivery service.
