Large Cylinder Tube with M-Shaped Cylinder Liner

Large Cylinder Tube with M-Shaped Cylinder Liner

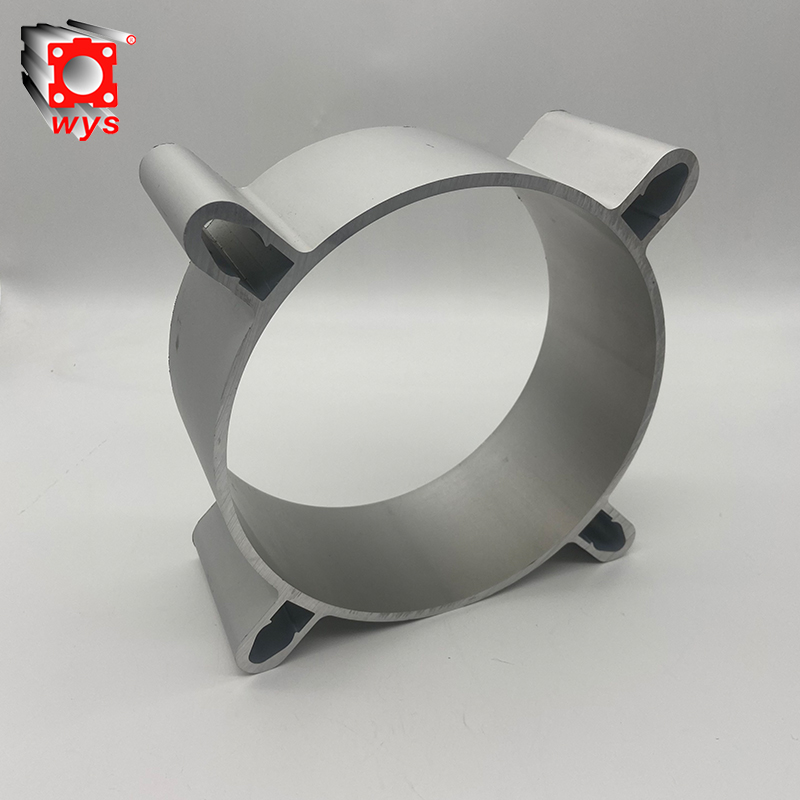

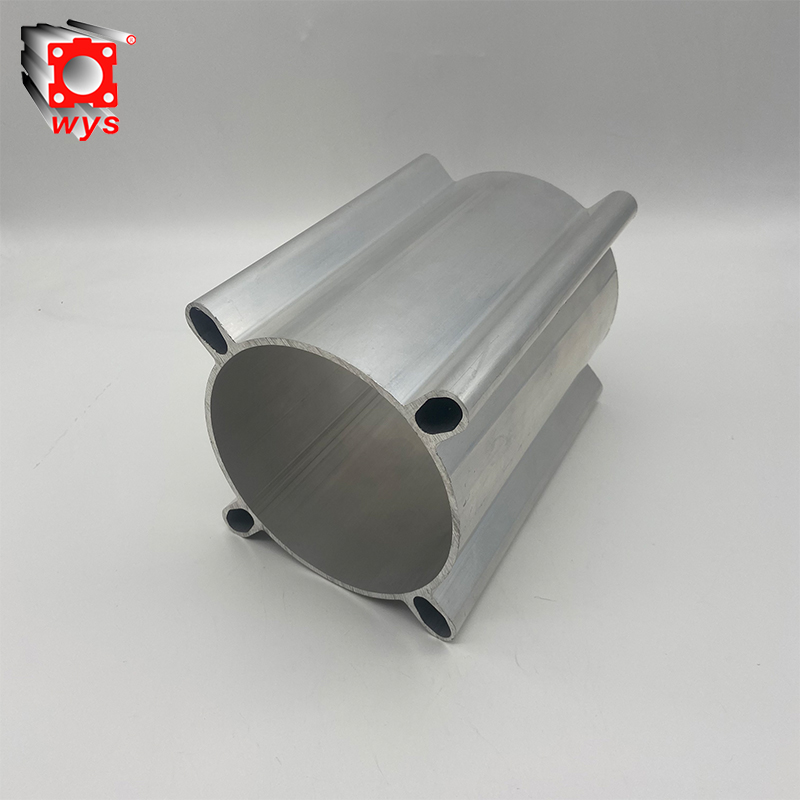

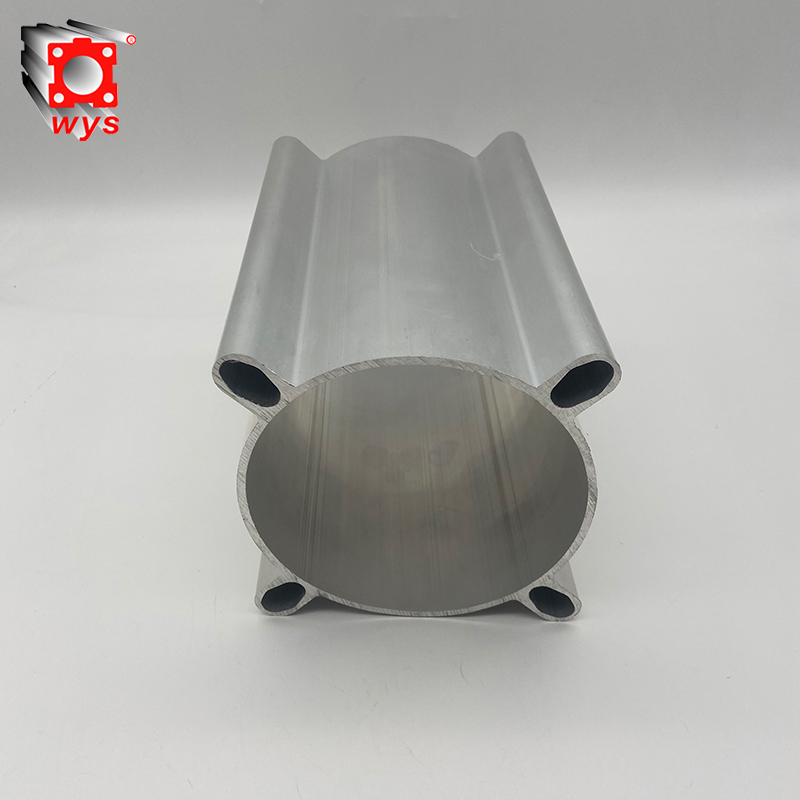

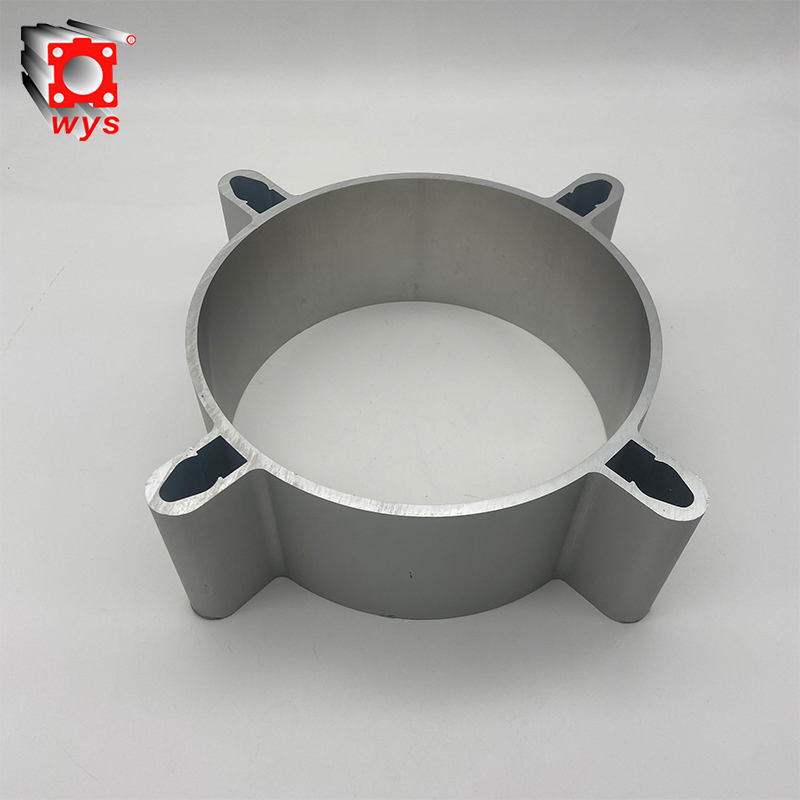

The design adopts an integrated one-piece cross-shaped profile without tie rods, which offers excellent torsional and compressive resistance, strong lateral force-bearing capacity, and ensures no vibration or deformation during operation with a large cylinder diameter. The cylinder barrel runs smoothly without any jitter; it is precisely matched with the cylinder end cover, sealing components, and other barrel accessories, ensuring seamless assembly and strong interchangeability. This significantly enhances the stability and smoothness of the pneumatic cylinder's output power and operation.

The material selected is high-quality 6061/6063 aluminum alloy, processed through cold drawing and fine drawing, followed by double-layer inner wall grinding. The inner hole has a smoothness of Ra 0.2-0.3, with extremely small dimensional tolerances. The wall thickness is uniform, the self-weight is light, and the heat dissipation is fast. It is wear-resistant, corrosion-resistant, has excellent airtightness, the piston runs smoothly with low friction, has an extremely low leakage rate, and is ideal for heavy-duty pneumatic cylinders.

The cylinder diameter covers the full range of large sizes (Φ10 - Φ320mm), and the length and stroke can be customized. The cross-slot standard is universal and compatible with mainstream pneumatic cylinder models both domestically and internationally. The production capacity at the source is sufficient, with regular models available for immediate delivery. Mold customization is flexible, and it is suitable for both export and domestic sales.

It is made by high-precision and high-quality aluminum alloy extrusion forming, with the inner wall finely honed. The inner wall is smooth, with high dimensional accuracy and low friction resistance. The piston runs smoothly without leakage. It is a reliable and high-quality precision cylinder aluminum tube.

The surface is subjected to hard anodizing, which is wear-resistant, rust-proof and corrosion-resistant. The appearance is regular, the slot positions are uniformly standard, the assembly fit is high, and it has strong versatility. It is a necessary high-quality cylinder tube accessory for cylinder assembly.It is widely used in pneumatic actuators of automated production lines, mechanical hands, stamping equipment, woodworking machinery, packaging equipment, injection molding machines, etc.

Selling Units:	Meter
Package Type:	1. Film anti wear protection 2. Optional cardboard packaging 3. Use export wooden boxes for large quantities
Picture Example:

Supply Ability

Q: Can I have a sample?

A: Yes, we can provide free samples, but we will charge for the delivery service at your location. In short, every requirement of yours is of the greatest value to us.

Q: How about the warranty?

A: 12 months of normal use.

Q: What is the delivery time?

A: For the regular model, it will take 7-10 days. Since we have the ability to maintain inventory, for large orders, it will take approximately 15-20 days.

Q: How do I place an order?

A: You can directly send us an email or make an inquiry on Alibaba.

Q: If I have a large order, will you offer a discount?

A: Yes, we can offer different discounts based on the quantity of your order.

Q: How will you ship the goods?

A: By sea/air/express delivery service.

Environmental Management System Certification Certificate

Occupational Health and Safety Management System Certification Certificate

Quality Management System Certification Certificate

SGS Material Testing Report

SGS material test report of the plastic bowl
