Precise Seamless M-Shaped Pneumatic Cylinder Tube

M-Shaped Pneumatic Cylinder Tube

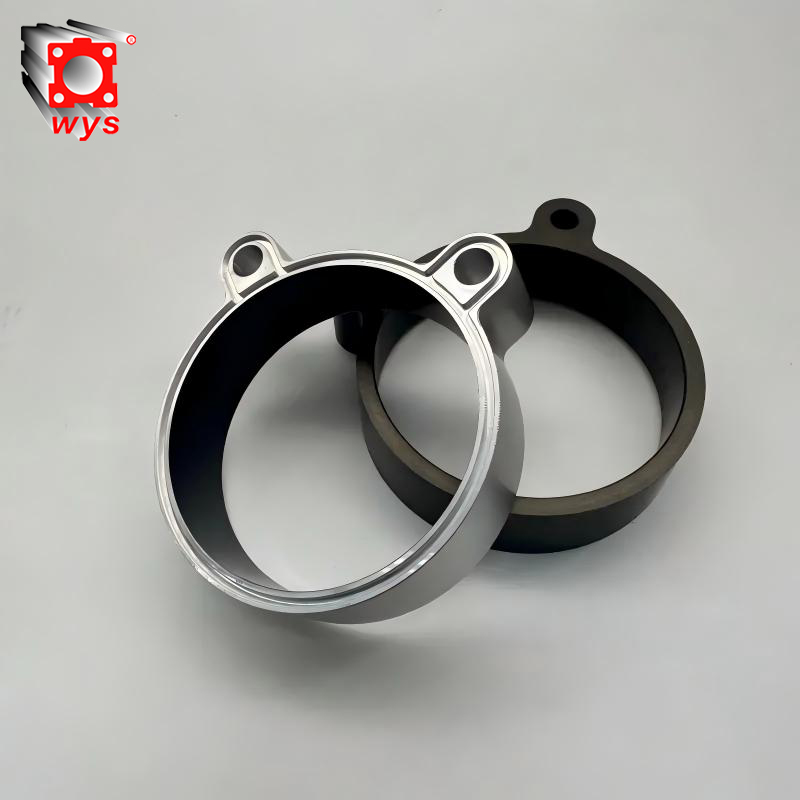

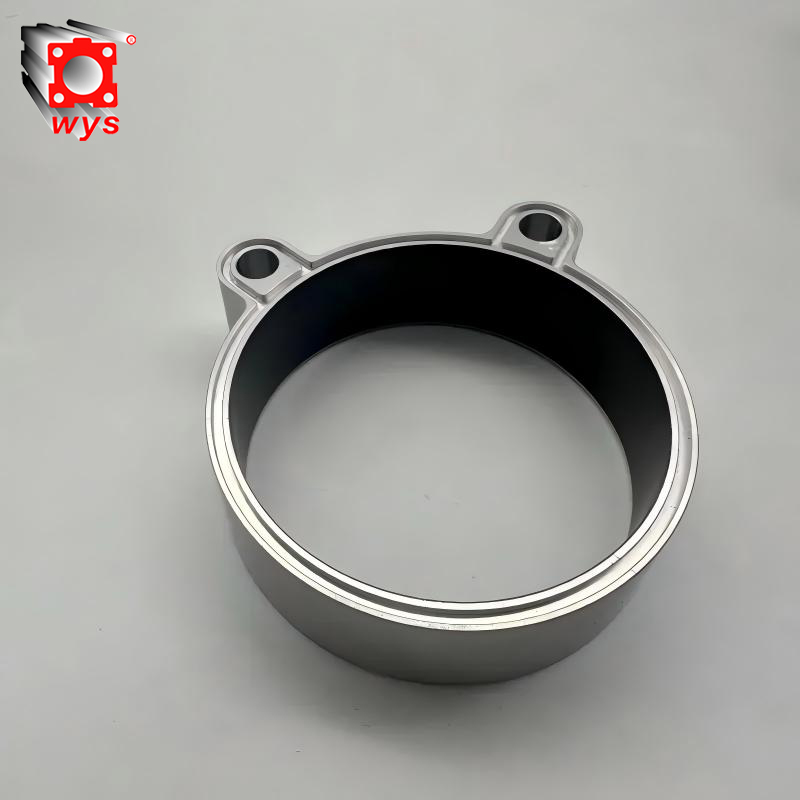

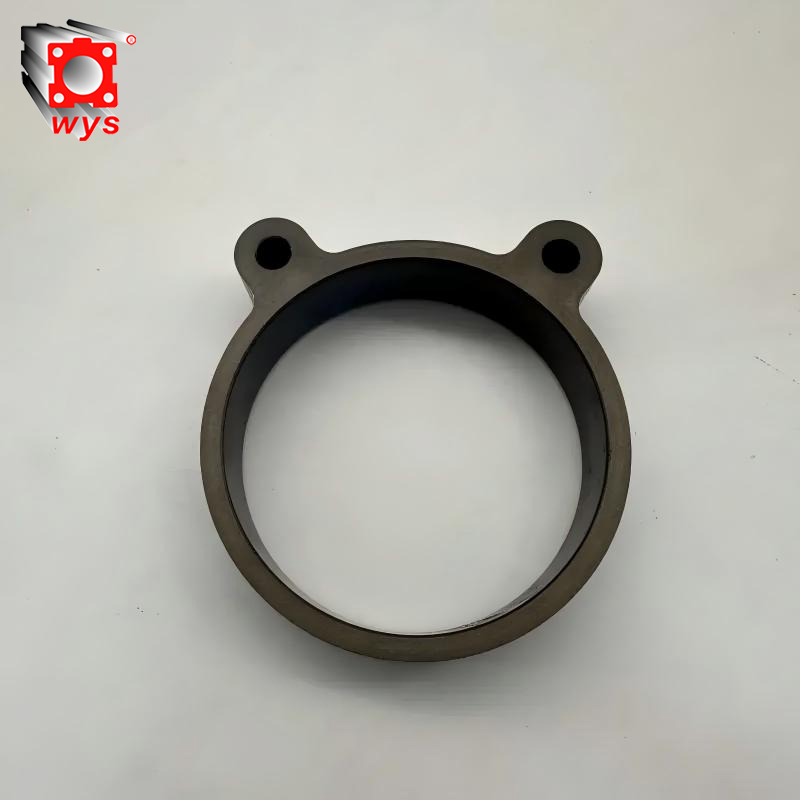

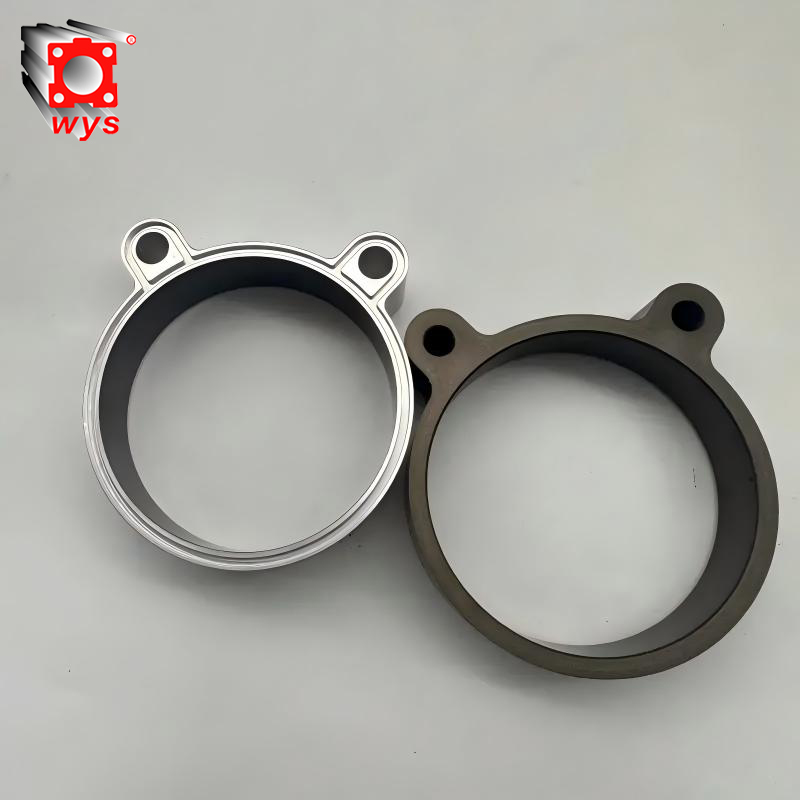

The Mi-shaped cylinder barrel is a core component specially designed by Weiyinjia for industrial automation pneumatic systems. Its cross-section features a Mi-shaped irregular structure, integrating multi-directional installation slots and magnetic switch slots. It can achieve rapid positioning and sensor assembly without the need for additional brackets.

Characteristics of the "M" structure design: It uses high-strength "M" shape aluminum profile cylinders, without a pull rod structure. The external part is equipped with sensor installation grooves, which makes the installation convenient and the structure compact, effectively saving equipment space.The aluminum alloy material is naturally resistant to corrosion. Combined with surface oxidation treatment, it can adapt to complex industrial environments such as those with high humidity and dust, thereby extending the service life.

Its core advantages: The character "M" structure enhances the rigidity of the cylinder tube, reducing running deformation; precise processing of the inner wall reduces wear, combined with high-quality sealing components, it has excellent air tightness and no leakage during long-term use. With its unique "M"-shaped internal reinforcement design, it is equipped with multi-directional positioning grooves. The installation holes precisely fit together, significantly reducing the debugging time and greatly improving the assembly efficiency.It is mainly applied in industrial automated production lines, medical and food machinery fields.

High cost-effectiveness: Weiyinjia has a large inventory of million-meter aluminum tubes, ensuring stable supply. Large-scale production helps reduce costs, and with high-quality aluminum cylinder tubes, we provide customers with cost-effective solutions for pneumatic core components.

Selling Units:	Meter
Package Type:	1. Film anti wear protection 2. Optional cardboard packaging 3. Use export wooden boxes for large quantities
Picture Example:

Supply Ability

About Us

The company has obtained ISO9001 quality management system certification and has established a strict full-process quality control system. From the entry of raw materials into the factory to the delivery of finished products, each process undergoes precise inspection to ensure that key indicators such as oxide film thickness, dimensional accuracy, and surface finish far exceed industry standards. With outstanding quality and stable performance, Weiyin Jiemi character cylinder sleeves are widely used in industrial automation, intelligent manufacturing, packaging machinery, medical devices, and automotive manufacturing, and are highly trusted by domestic and foreign customers.

Q: What kind of treatment was applied to the surface?

A: The standard is hard anodizing. It is wear-resistant, corrosion-resistant, and has a smooth surface (surface roughness Ra ≤ 0.4 μm). It is suitable for various seals and can extend the service life.

Q: Can the length be customized?

A: Sure, it can be cut into any length as needed with precise tolerance. We also support processing based on provided drawings or samples.

Q: What is the accuracy of the inner wall?

A: The inner wall is precisely rolled and ground. The roundness and cylindricity errors are small, and the mating with the sealing components is smooth without any jamming or leakage.
