Product Specifications
| Product Name: QGY Thin Cylinder Barrel | Length | Standard Aperture | Roughness | Material/Color | Tolerance | Appearance |
Customer Requirements | 16-300mm / Customization Available | Ra0.25 | Silver-white Aluminum Alloy | H9-H11 | Smooth finish, noticeable metallic luster (seams inconspicuous) |
| Product Attributes | |||||||
| Material | Length Tolerance | Country of Origin | Shipping Time | Province | Brand | Minimum Aluminum Content | Alloy Type |
| 6063-T5 | 12 millimeters | China | 15-20 days | Guangdong | WYS | 98.8% | Yes |
| Hardness | Length | Processing Services | Shape | Surface Treatment | Supply Status | Application | Processing Services |
| Hv420-450 | 2/2.4M, Customizable, CNC Machining | Punching, Cutting | Square | Anodizing | T5 | Used for manufacturing cylinders | CNC |
Product Features

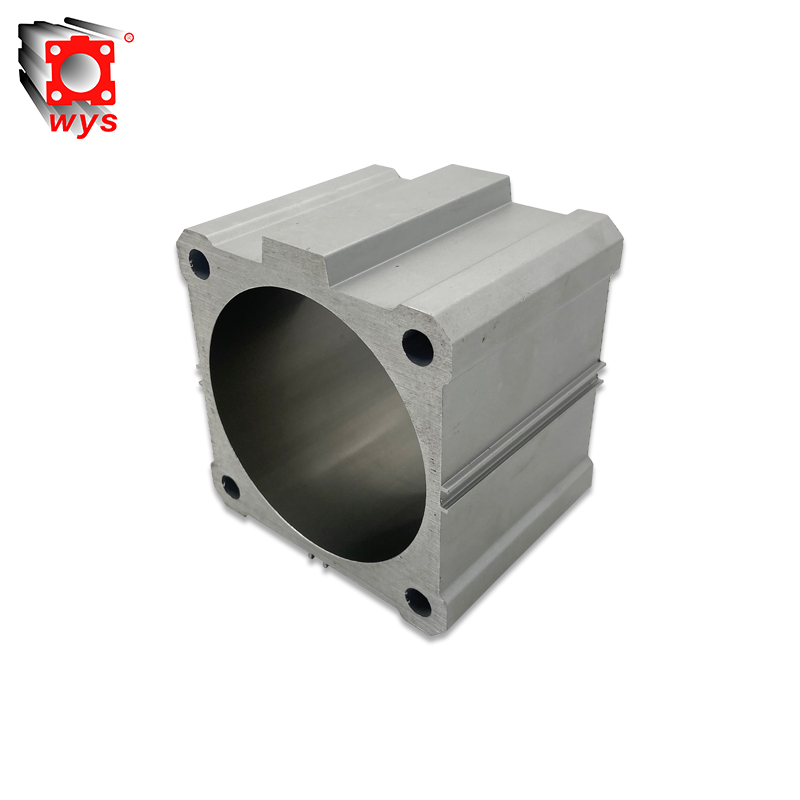

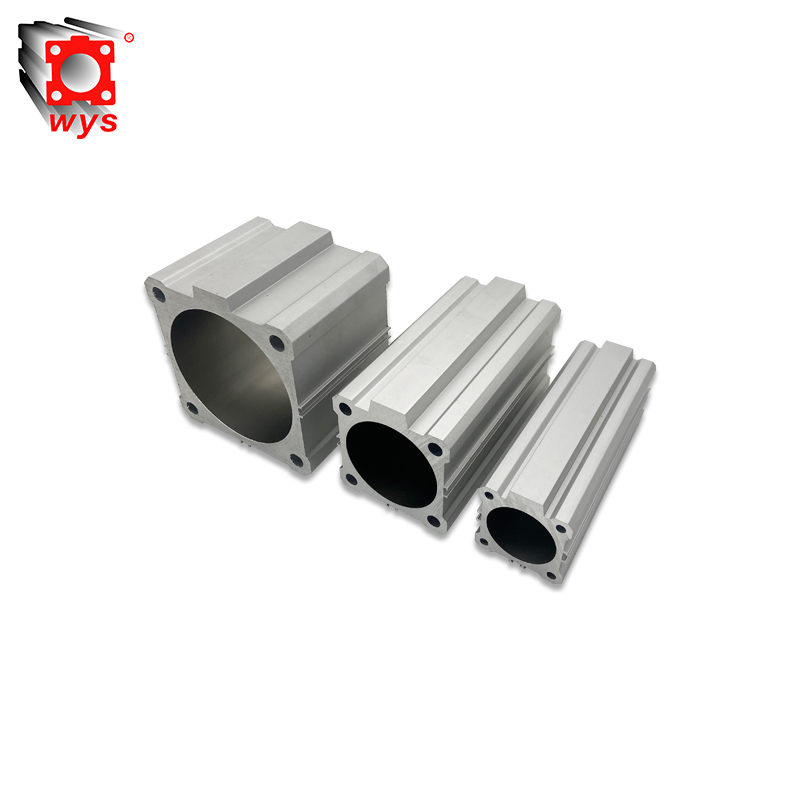

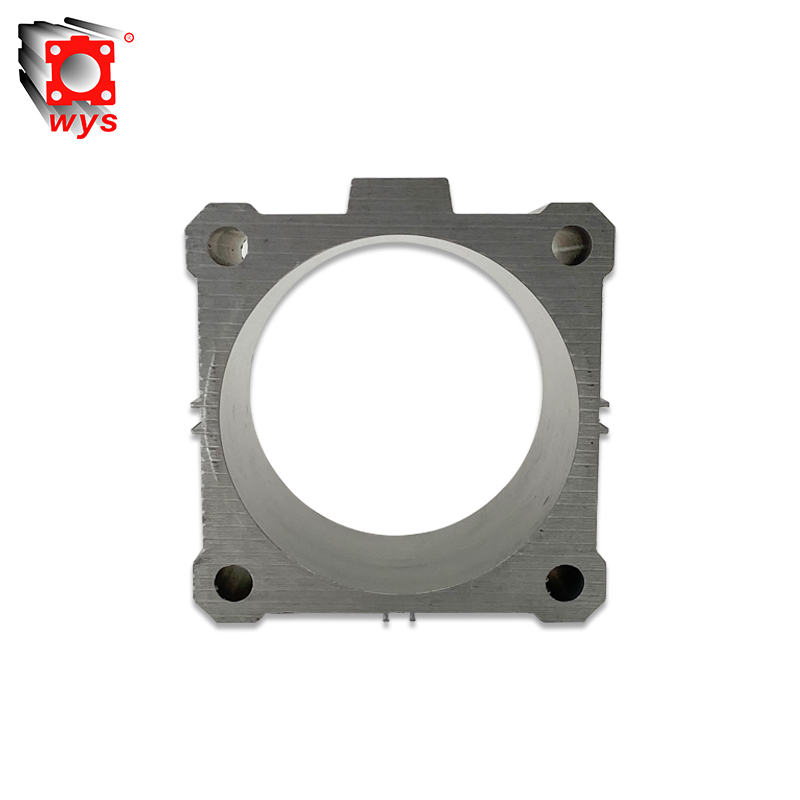

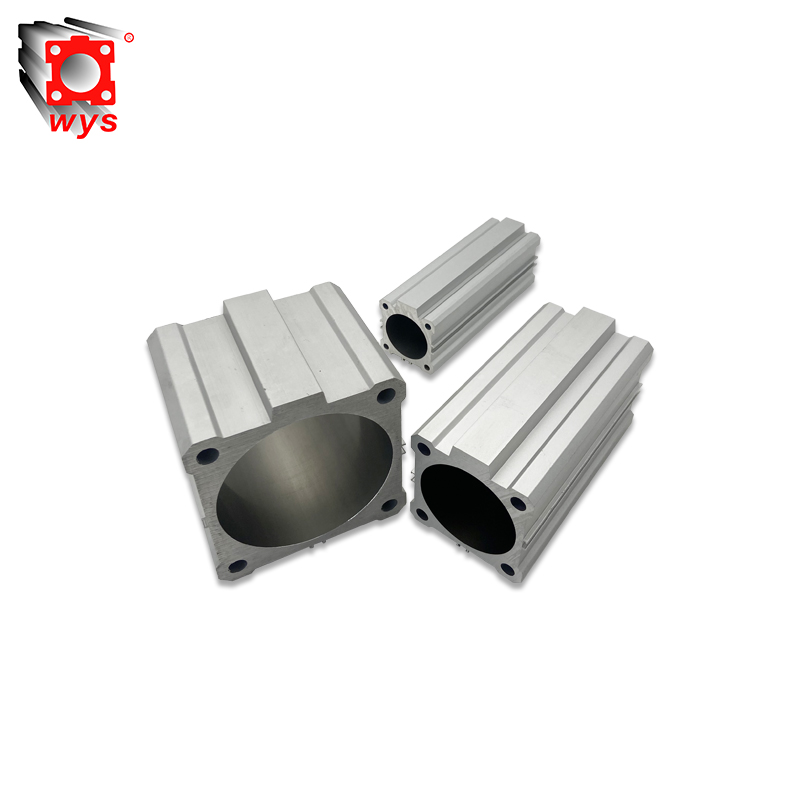

Foshan Weiyingjia Technology Co., Ltd. launches QGY thin cylinder barrel, made of 6063-T5 high-strength aluminum alloy to create premium aluminum alloy cylinder barrel. Adopting precision extrusion, hydraulic drawing and fully automatic honing technology, it reaches H7 high precision inner bore with Ra0.2 surface finish. The mirror inner wall effectively reduces friction resistance, improves operation efficiency and lowers energy consumption.
As a high-performance pneumatic cylinder barrel, it is processed with hard anodizing on inner and outer walls. With excellent wear and corrosion resistance, it can operate stably in a wide temperature range from -25℃ to +80℃, perfectly suitable for humid, dusty and other harsh working conditions.
It is also a standard Cylinder accessory aluminum tube for pneumatic matching. Strictly manufactured in accordance with ISO9001 quality system, each product passes professional air leakage inspection before delivery with ultra-low air leakage rate under high pressure. It features long service life and maintenance-free operation. Complete specifications and customized service are available, widely applied in automated equipment and pneumatic machinery, serving as a cost-effective core part for pneumatic systems.
Packaging & Delivery
| Selling Units: | Meter |
| Package Type: | 1. Film anti wear protection 2. Optional cardboard packaging 3. Use export wooden boxes for large quantities |
| Picture Example: |  |
Supply Ability
| Transportation | Ocean,Land,Air,Express |
| Supply Ability | 100000Meters/month |
| Port | Foshan,Guangzhou,Shenzhen |
| Payment Type | L/C,T/T,Paypal |
| Incoterm | FOB,EXW |
FAQ
A: We provide one-stop processing including aluminum cylinder precision cutting, CNC turning & milling, precision honing, hard anodizing, sandblasting & polishing, tapping and grooving for non-standard hardware parts.
A: Suitable for oil-free air compressors, oxygen concentrators, nebulizers, pneumatic cylinders, compressors, vacuum pumps and other pneumatic mechanical equipment.
A: Hard anodizing has higher hardness, better wear & corrosion resistance and thicker film, suitable for high pressure and long-term working conditions. Ordinary anodizing focuses on appearance and anti-corrosion with lower cost.
A: Free samples are available (buyer bears freight). Place bulk order only after sample approval to reduce procurement risk.
A: Strict quality control in line with ISO9001 standard. Return, exchange and replacement are available for non-artificial quality problems.
