Product Specifications
| Product Name: SAI Cylinder Barrel | Length | Standard Aperture | Roughness | Material/Color | Tolerance | Appearance |
Customer Requirements | 16-300mm / Customization Available | Ra0.25 | Silver-white Aluminum Alloy | H9-H11 | Smooth finish, noticeable metallic luster (seams inconspicuous) |
| Product Attributes | |||||||
| Material | Length Tolerance | Country of Origin | Shipping Time | Province | Brand | Minimum Aluminum Content | Alloy Type |
| 6063-T5 | 12 millimeters | China | 15-20 days | Guangdong | WYS | 98.8% | Yes |
| Hardness | Length | Processing Services | Shape | Surface Treatment | Supply Status | Application | Processing Services |
| Hv420-450 | 2/2.4M, Customizable, CNC Machining | Punching, Cutting | Square | Anodizing | T5 | Used for manufacturing cylinders | CNC |
Product Features

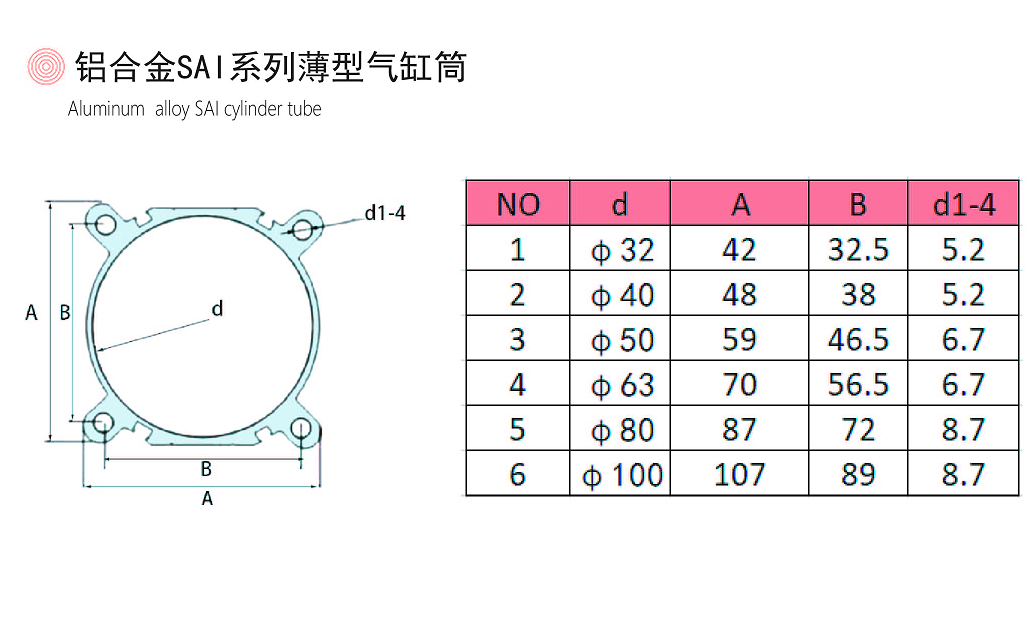

This product is a high-precision honed cylinder tube, integrally extruded from 6063 aluminum barrel, serving as a professional pneumatic cylinder component and SAI replacement cylinder tube compatible with AIRTAC SAI series. Manufactured in accordance with ISO15552 standards, the inner wall is precision-honed to Ra ≤ 0.4μm, featuring a smooth, burr-free surface with a low friction coefficient, effectively reducing seal wear and extending cylinder service life.
The tie-rod-free, H-shaped structure undergoes hard anodization, delivering excellent wear and corrosion resistance, high strength, and deformation resistance. With bore sizes ranging from 32mm to 200mm and tight dimensional tolerances of ±0.1mm, it directly replaces original barrels for easy installation, ideal for automated production lines and pneumatic machinery.serving as a core pneumatic cylinder component that balances light weight and high strength. The anodized surface resists corrosion and wear, preventing rust during long-term use; the ultra-smooth inner wall ensures smooth piston movement, strong airtightness, and zero air leakage.
With standard SAI specifications covering 32/40/50/63/80/100/125/160/200mm bores, it requires no secondary processing for plug-and-play installation, making it an ideal replacement part for industrial automation, packaging machinery, and electronic equipment.
Packaging & Delivery
| Selling Units: | Meter |
| Package Type: | 1. Film anti wear protection 2. Optional cardboard packaging 3. Use export wooden boxes for large quantities |
| Picture Example: |  |
Supply Ability
| Transportation | Ocean,Land,Air,Express |
| Supply Ability | 100000Meters/month |
| Port | Foshan,Guangzhou,Shenzhen |
| Payment Type | L/C,T/T,Paypal |
| Incoterm | FOB,EXW |
FAQ
A: We provide one-stop processing including aluminum cylinder precision cutting, CNC turning & milling, precision honing, hard anodizing, sandblasting & polishing, tapping and grooving for non-standard hardware parts.
A: Suitable for oil-free air compressors, oxygen concentrators, nebulizers, pneumatic cylinders, compressors, vacuum pumps and other pneumatic mechanical equipment.
A: Hard anodizing has higher hardness, better wear & corrosion resistance and thicker film, suitable for high pressure and long-term working conditions. Ordinary anodizing focuses on appearance and anti-corrosion with lower cost.
A: Free samples are available (buyer bears freight). Place bulk order only after sample approval to reduce procurement risk.
A: Strict quality control in line with ISO9001 standard. Return, exchange and replacement are available for non-artificial quality problems.
