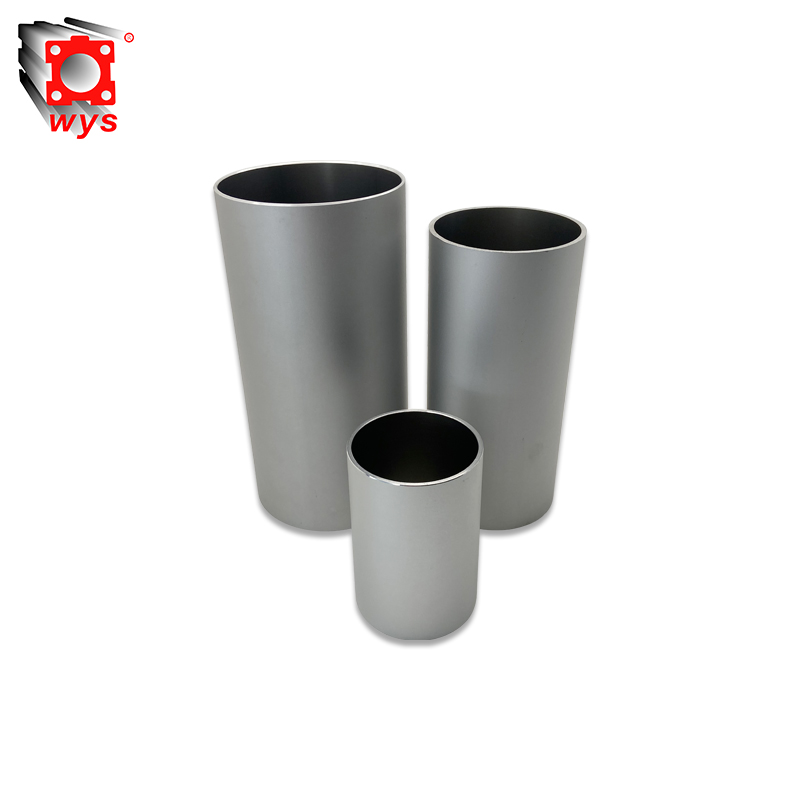

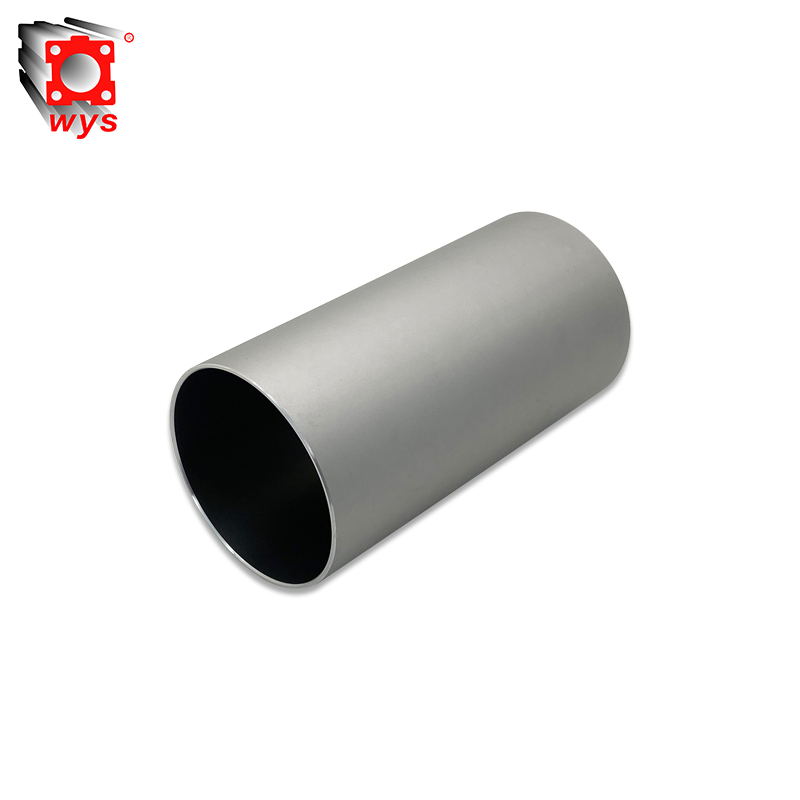

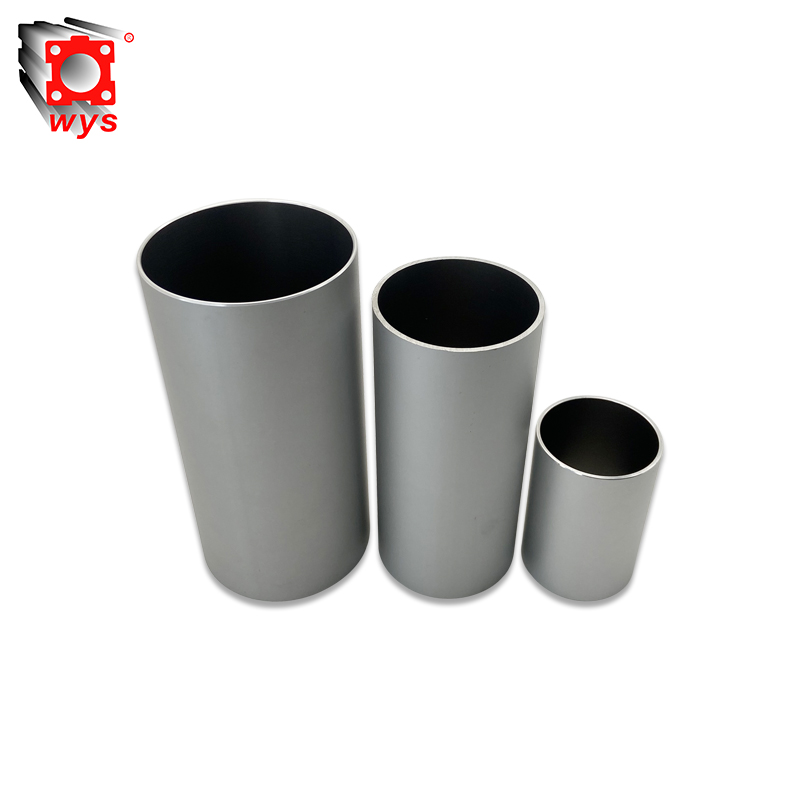

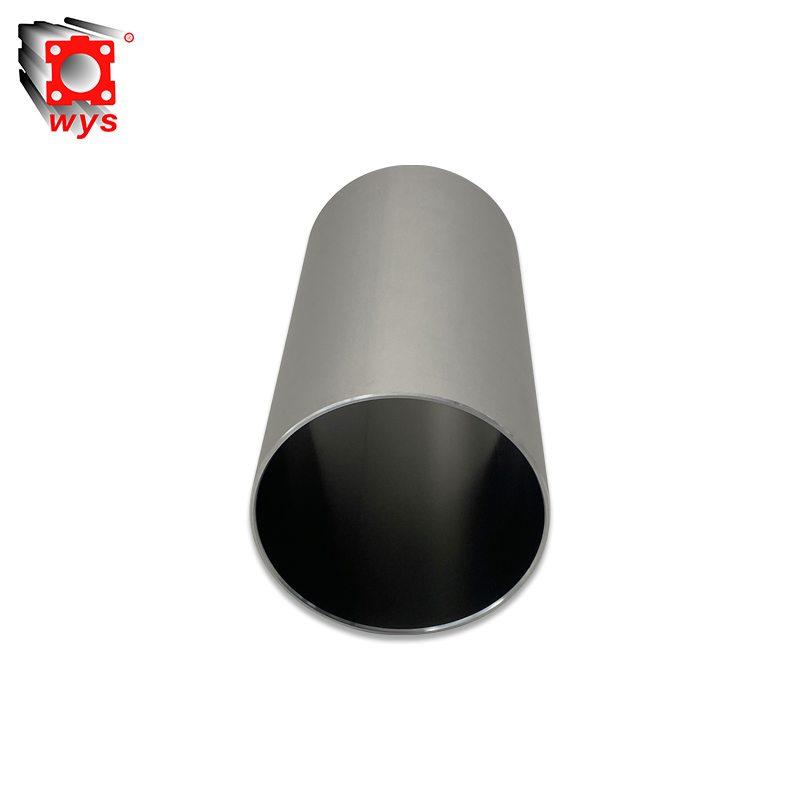

Product Specifications
| Model No.: | SC STANDARD ROUND AIR CYLINDER BARREL | Brand: | WEIYINGSI |
| Applicable Industry: | Cylinder | Place Of Origin: | FOSHAN,CHINA |
| Inner Roughness: | Ra< 0.4 um | Heat Resistant Temperature: | reach 200 degrees |
| Heat Treatment: | over 4 hour | Honing: | 2 times |
| Anodized Layer: | 15~25 um | Surface treatment: | 100 mesh fine sand |
| Working Pressure: | under 8 Mpa | Hardness: | hv 420 |

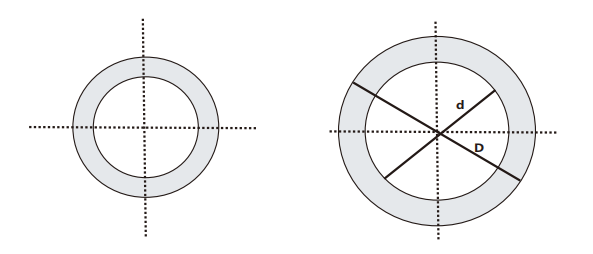

| ID | OD | THICKNESS | ID | OD | THICKNESS | |||||
| 16 | 20 | 2 | 80 | 86 | 3 | |||||
| 20 | 25 | 2.5 | 80 | 87 | 3.5 | |||||
| 25 | 30 | 2.5 | 80 | 92 | 6 | |||||
| 32 | 37 | 2.5 | 100 | 105 | 2.5 | |||||
| 35 | 40 | 2.5 | 100 | 106 | 3 | |||||
| 40 | 45 | 2.5 | 100 | 107 | 3.5 | |||||
| 50 | 54 | 2 | 100 | 110 | 5 | |||||
| 50 | 55 | 2.5 | 110 | 118 | 4 | |||||
| 50 | 57 | 3.5 | 125 | 132 | 3.5 | |||||
| 50 | 59(ELETRIC） | 4.5 | 125 | 133 | 4 | |||||
| 63 | 67 | 2 | 125 | 135 | 5 | |||||
| 63 | 68 | 2.5 | 140 | 150 | 5 | |||||
| 63 | 69 | 3 | 160 | 167 | 3.5 | |||||
| 63 | 70 | 3.5 | 160 | 170 | 5 | |||||
| 63 | 73(ELETRIC） | 5 | 180 | 190 | 5 | |||||
| 70 | 75 | 2.5 | 185 | 193 | 4 | |||||
| 70 | 78 | 4 | 200 | 210 | 5 | |||||
| 75 | 80 | 2.5 | 250 | 262 | 6 | |||||
| 75 | 81 | 3 | 300 | 316 | 8 | |||||
| 80 | 85 | 2.5 | 320 | 336 | 8 | |||||
Product Features
SC Standard Cylinder: High-Performance Pneumatic Solution for Industrial Automation
Material & Structure
The SC standard cylinder is precision-engineered using aerospace-grade 6063-T5 aluminum alloy, forming a seamless aluminum round tube with exceptional dimensional accuracy. The round cylinder barrel undergoes a specialized deep-drawing process, achieving an inner surface roughness of Ra≤0.2μm, making it ideal for dust-free pneumatic systems. To enhance durability, the aluminum round tube receives a 50μm hard-anodized coating, while the round cylinder barrel's bore maintains concentricity within ±0.015mm through CNC honing technology.
Technical Specifications
Core Components:
Aluminum round tube: Hardness HV400+, burst pressure ≥8MPa
Round cylinder barrel: Integrated buffer chambers with adjustable cushioning (0.05-0.5MPa)
Piston rod: 45# steel with 30μm hard chrome plating
Performance Parameters:
Operating pressure: 0.08-1.0MPa (standard), 0.05-1.5MPa (low-pressure variant)
Temperature range: -40℃~200℃ (with fluorocarbon-coated aluminum round tube)
Cycle rate: 1,200 cycles/min (oil-free lubrication compatible)
Installation Guidelines
The SC standard cylinder's aluminum round tube design incorporates universal ISO mounting standards:
Front/rear flanges: 4x M6 mounting holes (ISO 6431 compliant)
Round cylinder barrel: Pre-drilled NPT1/8 ports for pressure sensors
Optional rotary joints: 360° continuous rotation capability
When paired with electromagnetic pulse valves (1"-4" models), the SC standard cylinder demonstrates:
Response time <15ms (at 0.5MPa)
10 million cycle lifespan (certified by ISO 15552)
Explosion-proof certification: ATEX II 2G Ex h IIC T4
Industrial Applications
Dust Collection Systems:
Integrated with aluminum round tube manifolds for pulse-jet cleaning
Compatible with 0.5-3.0MPa compressed air sources
Round cylinder barrel anti-static treatment prevents dust adhesion
Automotive Manufacturing:
SC standard cylinder assemblies for welding robot end-effectors
High-precision aluminum round tube guiding systems (±0.01mm repeatability)
Food Processing:
FDA-compliant round cylinder barrel coatings
Corrosion-resistant aluminum round tube variants (pH 3-11 resistant)
Maintenance Protocol
Aluminum round tube care:
Clean monthly with anhydrous ethanol
Inspect anodized layer thickness annually
Round cylinder barrel optimization:
Replace seals every 500,000 cycles
Magnetic reed sensor alignment: <0.5mm gap requirement
High-temperature adaptation:
Upgrade to 7075-T6 aluminum round tube (200℃ continuous operation)
Apply high-temperature grease (Dow Corning 44 recommended)
Innovation Highlights
Patented SC standard cylinder design reduces air consumption by 40%
Smart aluminum round tube with embedded IoT sensors (pressure/temperature feedback)
Modular round cylinder barrel system allows rapid bore resizing (16-200mm range)
This advanced configuration positions the SC standard cylinder as the optimal choice for precision motion control, combining the lightweight advantages of aluminum round tube construction with the extreme durability of military-grade round cylinder barrel technology.
Packaging & Delivery
| Selling Units: | Meter |
| Package Type: | 1. Film anti wear protection 2. Optional cardboard packaging 3. Use export wooden boxes for large quantities |
| Picture Example: |  |
Supply Ability
| Transportation | Ocean,Land,Air,Express |
| Supply Ability | 100000Meters/month |
| Port | Foshan,Guangzhou,Shenzhen |
| Payment Type | L/C,T/T,Paypal |
| Incoterm | FOB,EXW |
FAQ
Q: Are you available to supply aluminum cylinder tube samples?
A: Yes, Weiyingjia is able to provide aluminum cylinder tube for you check quality,Normally stock sample is for free for saving your cost, but it will require mold cost if custom tube size.
Q: What’s your MOQ of aluminum cylinder tube?
A: If the require size we have stock.1pcs 2.4meter is ok.
Q: How long time of your aluminum cylinder tube to prepare?
A: It is only taking 7-10 days to complete your sample if the sample size is in stock.For bulk order, lead time according factory production plan, usually 7-25 days.
Q: What is payment terms of aluminum cylinder tube?
A: 30% T/T in advance, the balance payment is paid before shipment.
Q: Which type of surface finishes are you capable to make aluminum cylinder tube?
A: Normally Outer Hard Anodizing, Inner Matt sandy Anodizing.
Q: Are you trading company of factory?
A: We are manufacturer with over 20 years' experience in aluminum product,you will get top quality products and services. We can also OEM and ODM.
