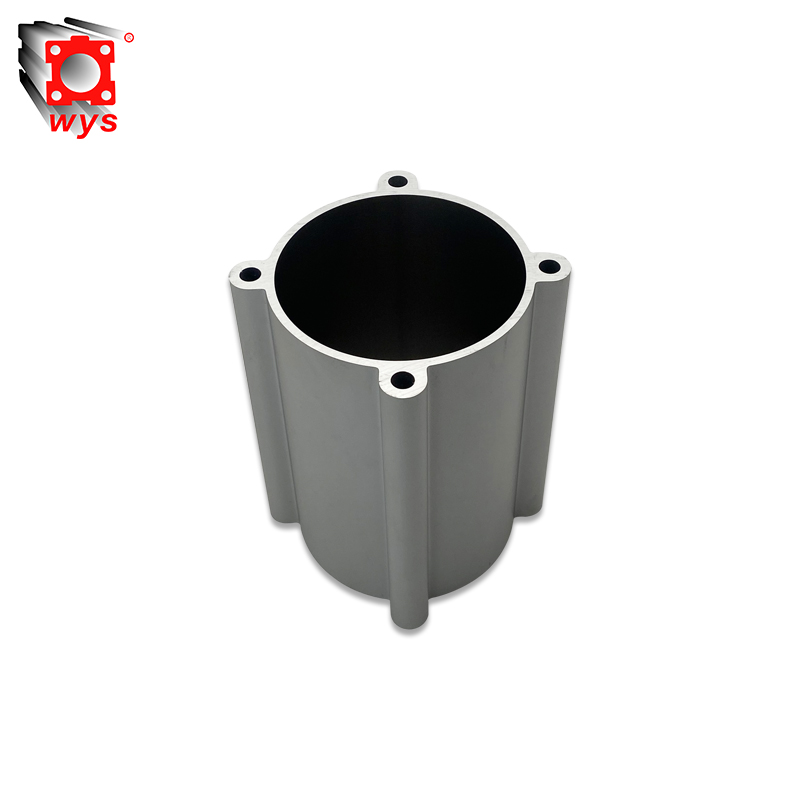

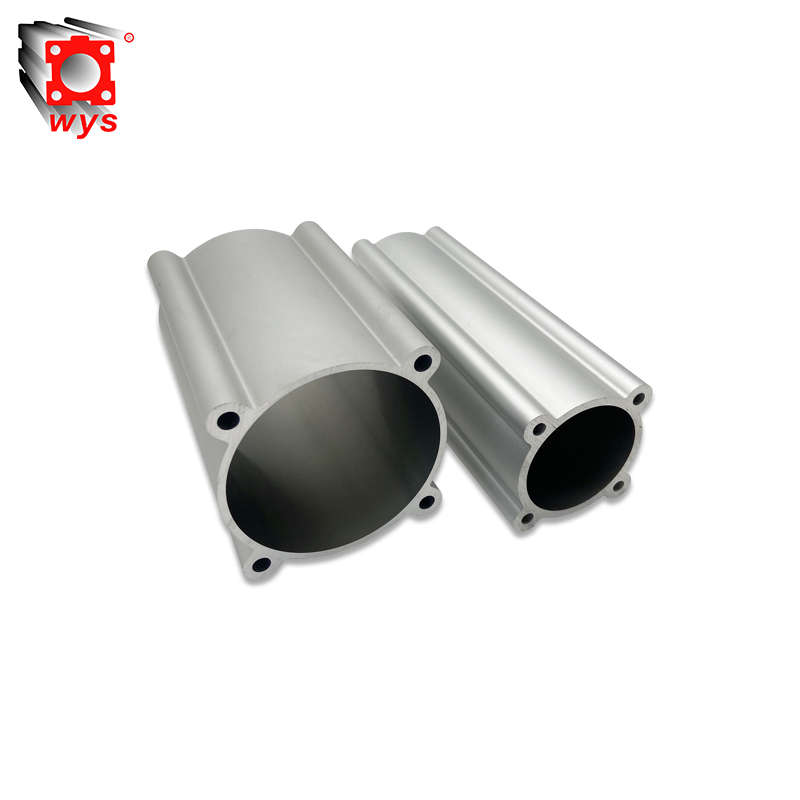

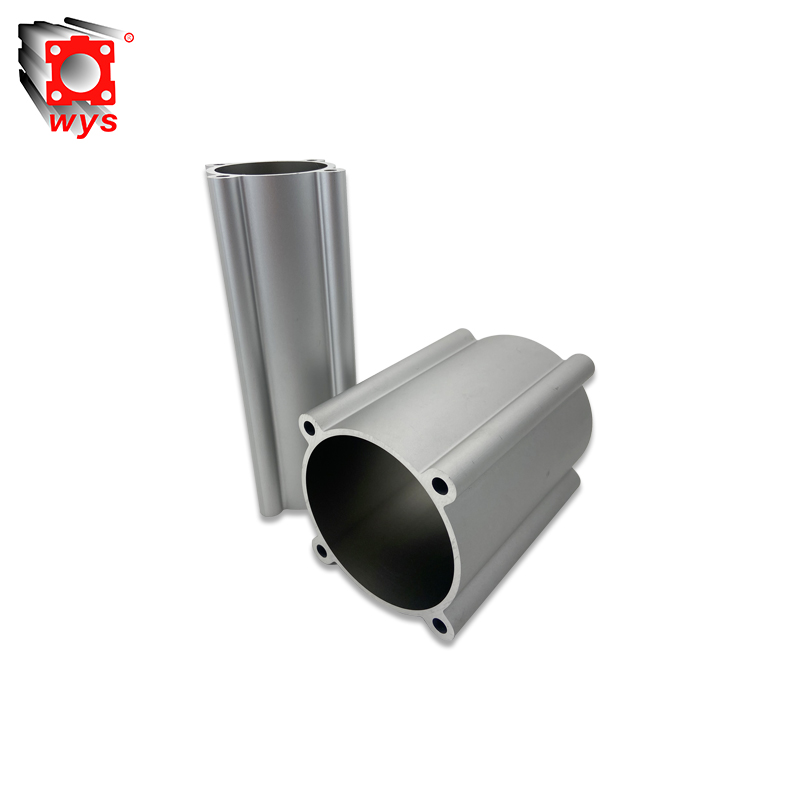

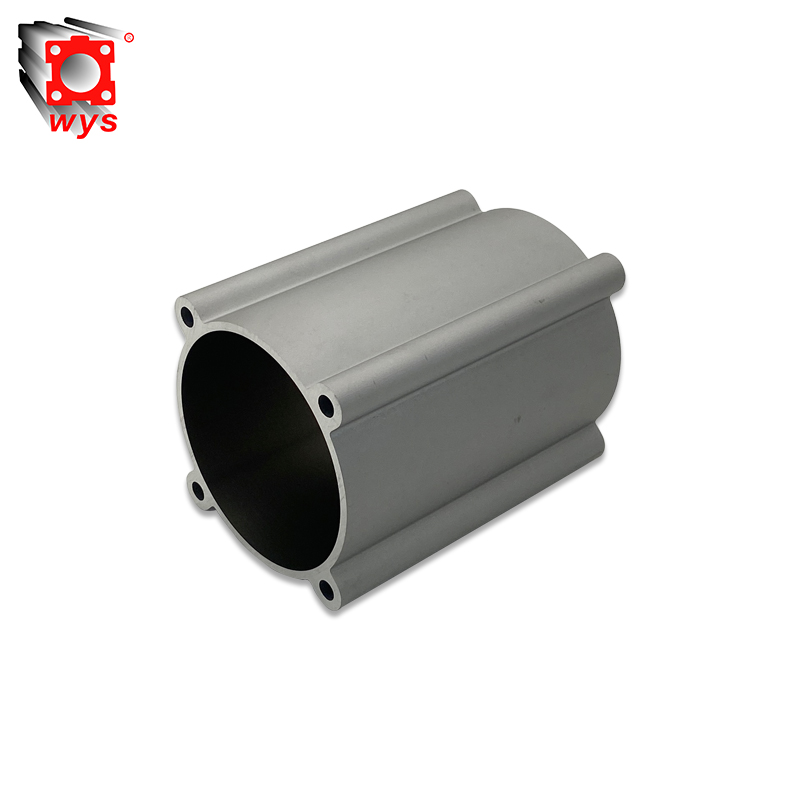

SU/SI MICKEY MOUSE LARGE DIAMETER CYLINDER BARREL

Technical Features and Applications of Mickey Mouse Cylinder

The SU SI Pneumatic Cylinder series, featuring the innovative SU SI Cylinder Tube, is widely used in automated systems across food processing, medical sterilization, textile dyeing, and industrial machinery. Combining durability with precision, these cylinders deliver exceptional performance in demanding environments.

Core Advantages

Advanced Cushioning Technology

All Mickey Mouse Cylinder models integrate adjustable hydraulic buffers, reducing impact forces by 67% at 0.8 m/s speeds.

The SU SI Cylinder Tube ensures smooth directional changes, critical for high-speed packaging lines and robotics.

High-Temperature Resilience

The SU SI Pneumatic Cylinder operates continuously at 150°C (175°C with Kalrez® seals) and withstands 250°C peak temperatures.

The Mickey Mouse Cylinder’s ceramic-coated SU SI Cylinder Tube prevents thermal deformation in industrial ovens.

Versatile Mounting Options

The Mickey Mouse Cylinder supports 8 configurations: front/rear flanges, trunnions, and swivel mounts.

The compact SU SI Cylinder Tube adapts to tight spaces with 18% shorter axial length (SU series), ideal for pharmaceutical automation.

Product Differentiation

SU Series Highlights

Compact Mickey Mouse Cylinder design with hidden tie rods (A6061-T6 aluminum).

Corrosion-resistant SU SI Cylinder Tube coating passes 2,000h salt spray tests.

Applications: Robotic arms, sterile medical filling systems.

SI Series Advantages

Rodless SU SI Pneumatic Cylinder achieves 3.5m strokes (±0.05mm precision) for large-scale automation.

Morse No.3 taper on the Mickey Mouse Cylinder ensures secure welding tool alignment in automotive lines.

The SU SI Pneumatic Cylinder delivers 210% clamping force for heavy-duty assembly tasks.

Industry-Specific Solutions

Food & Beverage: EHEDG-compliant SU SI Cylinder Tube with CIP/SIP compatibility, ensuring hygienic production.

Textiles: Heat-resistant Mickey Mouse Cylinder for dyeing machines (ASTM G31-certified coatings).

Medical: Biocompatible seals (USP Class VI) in SU SI Pneumatic Cylinder units for sterilization chambers.

Smart Upgrades

IoT-enabled SU SI Pneumatic Cylinder features:

Magnetostrictive sensors (0.001mm resolution) for precision control of Mickey Mouse Cylinder.

Predictive maintenance algorithms optimizing SU SI Cylinder Tube lifespan.

Energy-saving modes reducing consumption by 27% in continuous operation.

Selling Units:	Meter
Package Type:	1. Film anti wear protection 2. Optional cardboard packaging 3. Use export wooden boxes for large quantities
Picture Example:

Supply Ability

Transportation	Ocean,Land,Air,Express
Supply Ability	100000Meters/month
Port	Foshan,Guangzhou,Shenzhen
Payment Type	L/C,T/T,Paypal
Incoterm	FOB,EXW

Q: Are you available to supply aluminum cylinder tube samples?

A: Yes, Weiyingjia is able to provide aluminum cylinder tube for you check quality,Normally stock sample is for free for saving your cost, but it will require mold cost if custom tube size.

Q: What’s your MOQ of aluminum cylinder tube?

A: If the require size we have stock.1pcs 2.4meter is ok.

Q: How long time of your aluminum cylinder tube to prepare?

A: It is only taking 7-10 days to complete your sample if the sample size is in stock.For bulk order, lead time according factory production plan, usually 7-25 days.

Q: What is payment terms of aluminum cylinder tube?

A: 30% T/T in advance, the balance payment is paid before shipment.

Q: Which type of surface finishes are you capable to make aluminum cylinder tube?

A: Normally Outer Hard Anodizing, Inner Matt sandy Anodizing.

Q: Are you trading company of factory?

A: We are manufacturer with over 20 years' experience in aluminum product,you will get top quality products and services. We can also OEM and ODM.
