In pneumatic systems, the cylinder is a crucial actuator that converts compressed air energy into mechanical motion. Cylinder operation depends on the stable establishment of internal air pressure, and to ensure that the air pressure effectively drives the piston, good sealing performance is essential within the cylinder.
In this structural system, pneumatic cylinder seal kits play a vital role.
Pneumatic cylinder seal kits are key components in the pneumatic cylinder sealing system. They are typically installed near the piston or piston rod to prevent compressed air leakage and maintain stable internal cylinder pressure. Without pneumatic cylinder seal kits, compressed air inside the cylinder can easily leak through the piston clearance or rod end clearance, leading to decreased cylinder operating efficiency.
Therefore, in modern pneumatic equipment design, pneumatic cylinder seal kits are not only fundamental components ensuring the normal operation of the cylinder but also important factors affecting cylinder performance and service life.
This article will systematically analyze the question "Why are pneumatic cylinder seal kits used in pneumatic cylinders?" from the perspectives of structural principles, functional roles, and technical requirements.
What are pneumatic cylinder seal kits?

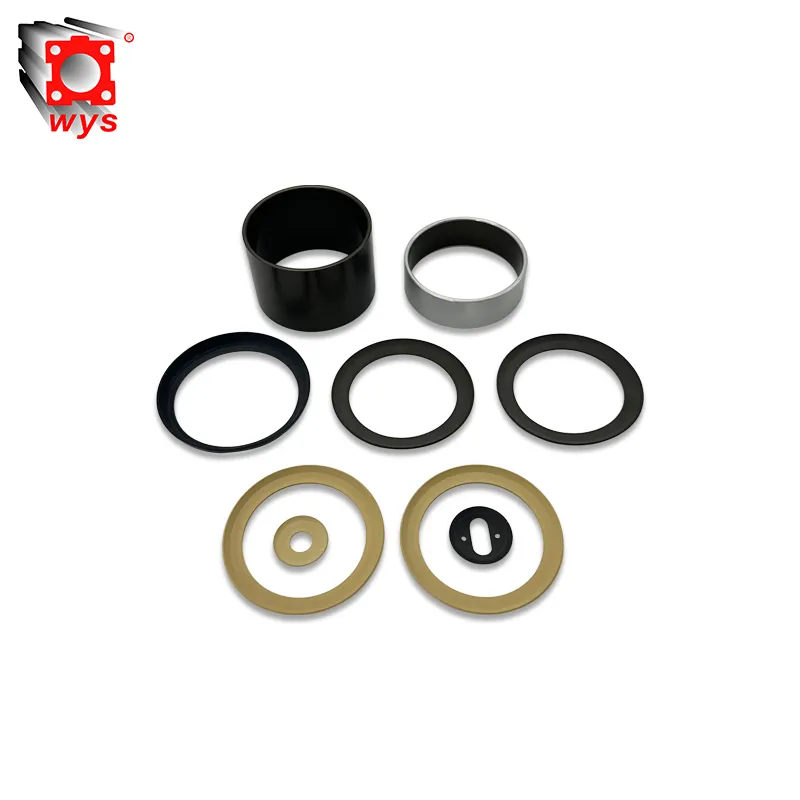

In the internal structure of a pneumatic cylinder, a pneumatic cylinder seal kit is a component specifically designed to seal the gas. It is typically made of rubber, polyurethane, or other wear-resistant materials and installed in critical locations inside the cylinder.
Pneumatic cylinder seal kits are usually used in conjunction with the following components:
• Piston
• Piston rod
• Cylinder end cap
• Cylinder wall
By tightly fitting with these components, pneumatic cylinder seal kits form an effective sealing interface, thereby preventing compressed air leakage.
The main characteristics of pneumatic cylinder seal kits include:
• Good elasticity
• High wear resistance
• Strong pressure resistance
• Good sealing performance
These characteristics enable pneumatic cylinder seal kits to operate stably in pneumatic systems for extended periods.
What is the main function of pneumatic cylinder seal kits?
During the operation of a pneumatic cylinder, pneumatic cylinder seal kits perform several important functions.
First, pneumatic cylinder seal kits maintain the gas pressure inside the cylinder. When compressed air enters the cylinder, pneumatic cylinder seal kits prevent air leakage from the piston or piston rod clearance, ensuring that the gas pressure effectively acts on the piston.
Secondly, pneumatic cylinder seal kits improve cylinder efficiency. Without them, compressed air cannot maintain a stable pressure inside the cylinder, affecting both thrust and speed.
Furthermore, pneumatic cylinder seal kits reduce friction and wear. Many are made from low-friction materials, reducing piston movement resistance while maintaining sealing performance.
Therefore, pneumatic cylinder seal kits are not only sealing components but also crucial structures for ensuring stable cylinder operation.
What happens if a cylinder lacks pneumatic cylinder seal kits?
If a pneumatic cylinder lacks pneumatic cylinder seal kits, several problems may occur during operation.
First, compressed air will leak from the piston clearance, preventing pressure buildup inside the cylinder. This will significantly reduce the cylinder's output thrust.
Second, gas leakage will also lead to energy loss in the pneumatic system. Pneumatic equipment requires a constant supply of compressed air, which increases system energy consumption.
Furthermore, gas leakage can cause cylinder instability, such as:
• Uneven piston movement
• Speed fluctuations
• Thrust variations
Therefore, a cylinder without pneumatic cylinder seal kits can hardly function properly.
Why are pneumatic cylinder seal kits effective at preventing gas leakage?
Pneumatic cylinder seal kits effectively prevent gas leakage primarily due to their special structural design.
Pneumatic cylinder seal kits are typically made of elastic materials that, after installation, fit tightly against the cylinder wall and piston surface. When gas pressure is generated inside the cylinder, the gas pressure further compresses the pneumatic cylinder seal kits, thereby enhancing the sealing effect.
This sealing method has the following characteristics:
• Adaptive to pressure changes
• Automatic compensation for minute gaps
• Stable sealing performance
It is because of these characteristics that pneumatic cylinder seal kits can maintain a good sealing state in pneumatic cylinders for a long time.
Where are pneumatic cylinder seal kits installed in a cylinder?
Pneumatic cylinder seal kits are typically installed in several critical locations inside a cylinder, with each kit serving a different function.
Common installation locations include:
1. Piston Seal Sleeve
Installed on the outside of the piston to separate gas pressure on both sides of the cylinder.
2. Piston Rod Seal Sleeve
Installed at the cylinder end cap to prevent gas leakage along the piston rod.
3. Dustproof Seal Sleeve
Installed at the outer end of the cylinder to prevent dust from entering the cylinder interior.
These different types of pneumatic cylinder seal kits together constitute the complete sealing system of a cylinder.
Why are the materials used in pneumatic cylinder seal kits important?
The performance of pneumatic cylinder seal kits depends heavily on their materials.
Common materials for pneumatic cylinder seal kits include:
• Rubber
• Polyurethane
• PTFE
Different materials result in different performance characteristics for pneumatic cylinder seal kits in the following aspects:
• Wear resistance
• Sealing ability
• Temperature adaptability
• Coefficient of friction
Choosing the right material for pneumatic cylinder seal kits can significantly improve cylinder lifespan.
Will pneumatic cylinder seal kits wear out?
Although pneumatic cylinder seal kits have good wear resistance, wear may still occur during long-term use.
Causes of pneumatic cylinder seal kit wear include:
• High-speed piston movement
• Impurities in compressed air
• Insufficient lubrication
• Temperature changes
When pneumatic cylinder seal kits wear severely, the cylinder may experience the following problems:
• Air leakage
• Reduced thrust
• Unstable operation
Therefore, the condition of pneumatic cylinder seal kits needs to be checked regularly during equipment maintenance.
How to extend the lifespan of pneumatic cylinder seal kits?
To extend the service life of pneumatic cylinder seal kits, the following measures can be taken:
First, ensure that clean compressed air is used in the pneumatic system. Dust and impurities in the air will accelerate the wear of pneumatic cylinder seal kits.
Second, the condition of the pneumatic cylinder seal kits should be checked regularly. If a decline in sealing performance is found, they should be replaced promptly.
In addition, properly controlling the cylinder operating speed and load also helps reduce the wear of pneumatic cylinder seal kits.
These measures can effectively extend the service life of pneumatic cylinder seal kits.
What impact do pneumatic cylinder seal kits have on cylinder performance?
Pneumatic cylinder seal kits are one of the important factors affecting cylinder performance.
Good pneumatic cylinder seal kits can bring the following advantages:
• Increased cylinder thrust
• Improved motion stability
• Reduced energy loss
• Extended cylinder life
Conversely, if the pneumatic cylinder seal kits are of poor quality or severely worn, cylinder performance will significantly decline.
Therefore, the quality and condition of pneumatic cylinder seal kits should be given special attention during the design and maintenance of pneumatic equipment.
Why are pneumatic cylinder seal kits used inside pneumatic cylinders?
Because pneumatic cylinder seal kits are an indispensable and crucial component inside pneumatic cylinders.
The main functions of pneumatic cylinder seal kits include:
• Preventing compressed air leakage
• Maintaining internal cylinder pressure
• Improving cylinder operating efficiency
• Reducing friction and wear
Without pneumatic cylinder seal kits inside the cylinder, the pneumatic system will not be able to maintain stable pressure, and the cylinder will not function properly.
Can Weiyingjia provide high-quality pneumatic kits?
Yes. Weiyingjia specializes in aluminum alloy pneumatic cylinder kits, liners, and seal rings. Our factory and technical teams ensure each product passes strict quality inspections including CNC machining, polishing, and hard anodizing. Buyers purchasing from our company can expect durable, high-precision, and energy-efficient products. As a trusted manufacturer and supplier, Weiyingsi provides competitive prices, wholesale support, and professional sales services for industrial clients worldwide.
