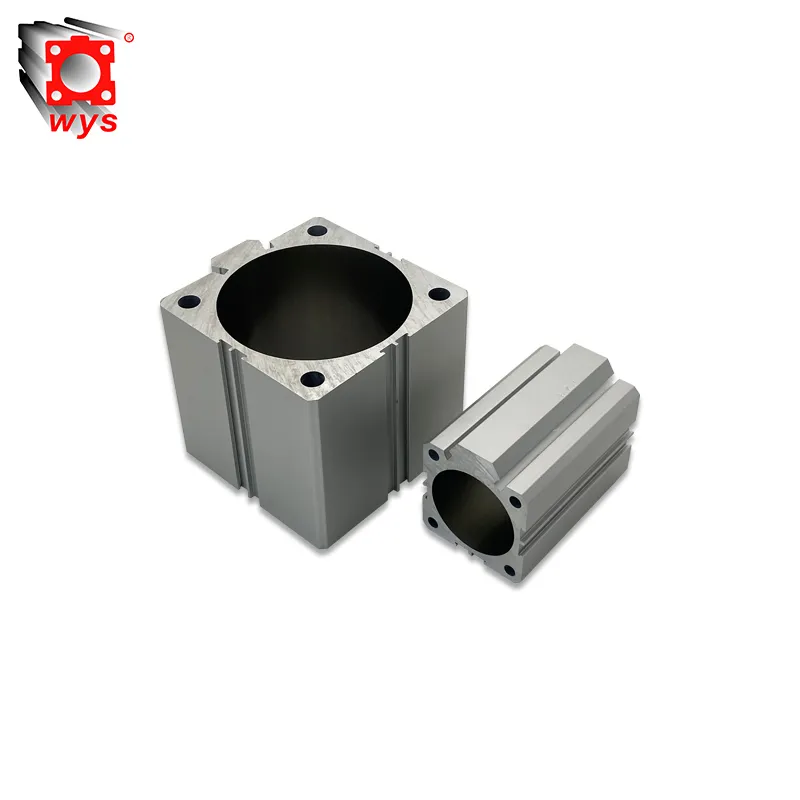

The pneumatic cylinder barrel is the main structural component of the cylinder, a hollow, cylindrical part with closed ends or end caps. The piston and piston rod complete their reciprocating linear motion inside the pneumatic cylinder barrel.

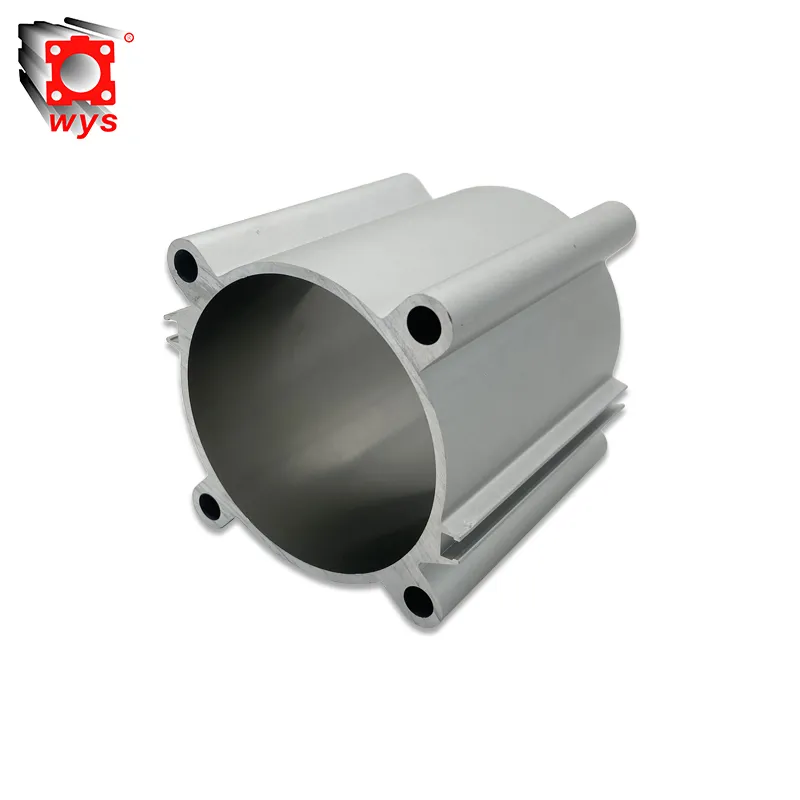

In a typical structure, the sealing of a pneumatic cylinder barrel mainly includes: • Between the cylinder inner wall and the piston assembly • Between the pneumatic cylinder barrel and the front and rear end caps • Between the piston rod and the end cap guide section • Between the port connection and the external air passage

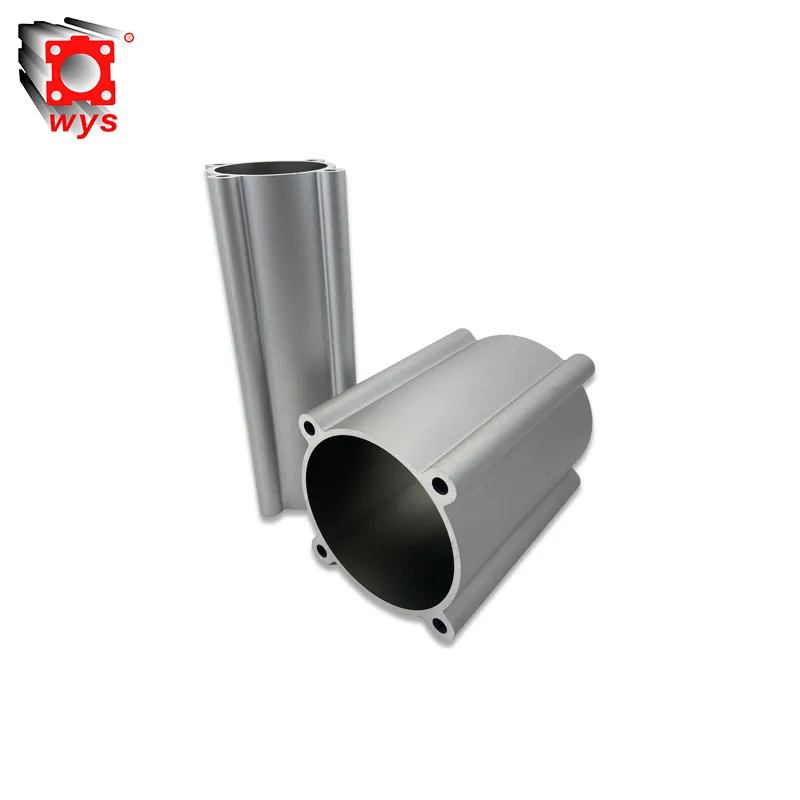

In current industrial applications, aluminum alloy is one of the most common and widely used materials for pneumatic cylinder barrels. The widespread use of aluminum alloys in pneumatic cylinder barrel manufacturing is not accidental, but stems from their comprehensive performance being highly compatible with the requirements of pneumatic systems.

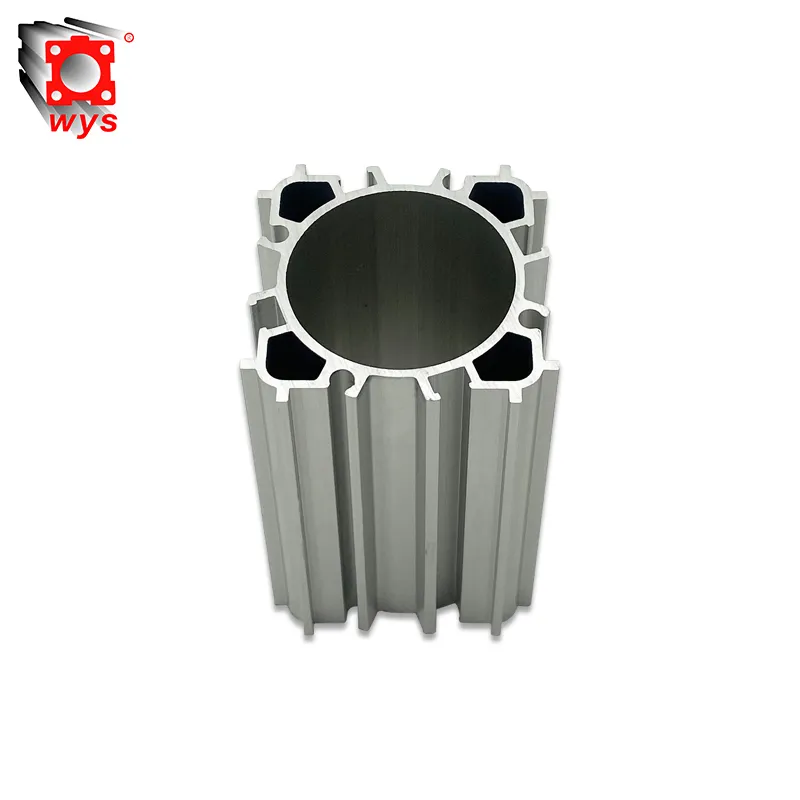

Strictly speaking, the pressure inside the pneumatic cylinder barrel is not obtained through "calculation," but rather through system settings and measurements. Output force = Pressure inside the pneumatic cylinder barrel × Effective piston area When the pressure unit is psi and the area unit is square inches, the unit of output force is pounds (lb).

If the following conditions exist: • Large return load • Non-perpendicular installation direction • Non-negligible motion resistance • Insufficient or unstable spring return force From a reliability perspective, these conditions are very suitable for using a double-acting pneumatic cylinder barrel.

A single-acting pneumatic cylinder barrel refers to a structure that withstands compressed air in only one direction. A double-acting pneumatic cylinder barrel is a pneumatic cylinder barrel in which compressed air can alternately enter from both sides, thus achieving bidirectional piston drive.
